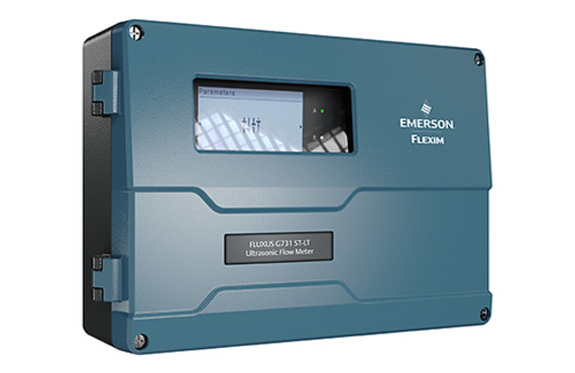

The Flexim FLUXUS G731 ST-LT is a high-performance ultrasonic clamp-on flow meter specifically designed for non-intrusive steam flow measurement at temperatures up to 180 °C (356 °F). With the capability to operate on up to two channels simultaneously, it delivers accurate and stable results—even under challenging flow conditions.

This versatile system offers a range of flexible input and output options to suit various application requirements. It is also available with a rugged stainless steel enclosure and FM Class I Division 2 certification, making it ideal for use in harsh or hazardous environments.

The meter uses the transit time difference method to provide precise readings at very low flow velocities—as low as 0.01 m/s (0.03 ft/s)—without needing to modify or constrict the pipe to achieve higher speeds. This non-invasive design reduces installation time, eliminates process interruptions, and lowers long-term operating costs, offering a cost-efficient measurement solution across the board.

Ultrasonic Clamp-On Flow Meter Rentals

Connect with our Team at Spartan Controls for a conversation about your flow application. Our team of flow experts will help you discover the optimal solution for your flow measurement needs.

Learn More
Get in touch with an expert, find your nearest office location, or send us a note about your next project!!
Talk to one of our experts in this field
+1 (877) 278-6404
+
Flexim FLUXUS G731 ST-LT Non-intrusive Steam Flow Measurement

Specs

Fluid type
Saturated and superheated steam
Accuracy
Measurement uncertainty of the measuring system (volumetric flow rate): ±0.3 % of reading ±0,005 m/s (±0.02 ft/s)
Measurement uncertainty at the measuring point (volumetric flow rate): ±1 to 3 % of reading ±0,005 m/s (±0.02 ft/s)
Repeatability
0.15 % of reading ±0,005 m/s (±0.02 ft/s)
Flow Channels
up to 2
Range
Flow Velocity Range: depending on pipe diameter and transducer
Certifications/Approvals
FM Class I /Div 2
ATEX/IECEx Zone 2
Power supply
90-264VAC
11-32VDC
Pipe size
23 to 1000 mm (0.9 to 39.4 inch)
Pressure range
3 to 10 barg (44 to 145 psig)
Temperature range (media)
+135 to +180°C (+275 to +356°F)
Output
4-20mA active/passive
4-20mA HART® active/passive
pulse/frequency/binary
Input
Temperature
4-20mA active/passive
Communication Protocol
Modbus RTU/TCP
BACnet MSTP/IP
Profibus PA
FOUNDATION Fieldbus
M-Bus

Features

  • SCA - Synchronized Channel Averaging function for difficult measuring points.
  • Transmitters available for FM Class I Division 2 and IECEx/ATEX Zone 2.
  • Stainless steel housing available.
  • Installation, commissioning and maintenance without process interruption.
  • Extremely high measuring dynamics - no need to reduce pipe diameters.
  • No flow range limitations - 0.01 to 60 m/s (0.03 to 197 ft/s).
  • Zero loss of pressure - zero loss of energy.
  • Bi-directional measurement.
  • Integrated mass flow measuring through the saturated steam curve and online measuring of temperature.
  • Advanced Meter Verification.
  • ISO 24062 compliant.
  • Flow disturbance correction to reduce required straight runs down to 2D inlet.
