Spartan Controls Bettis™ RTS fail safe or fail last solutions for your wellhead, lift gas, and separator applications

Spartan Controls Bettis™ RTS fail safe or fail last solutions for your wellhead, lift gas, and separator applications

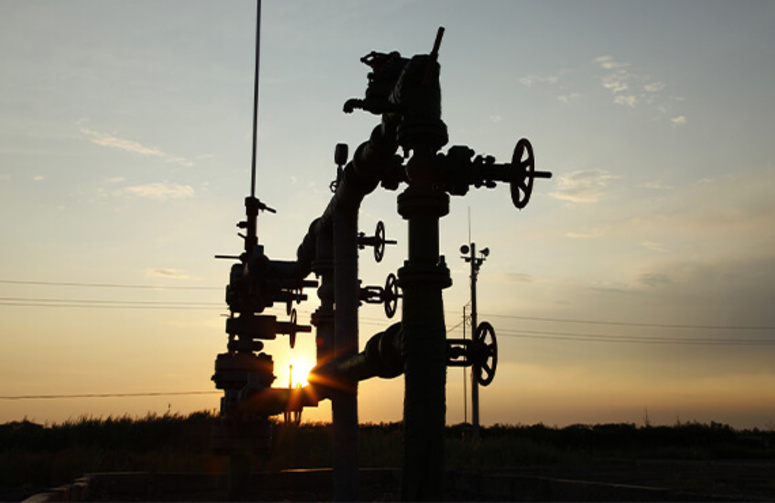

True Mechanical Fail Safe
  • The Bettis™ RTS FL actuator provides a true mechanical spring return fail safe design on loss of power or signal

Precise Process Control
  • Provides high speed and high accuracy control-0.1%
  • Provides On/Off or S9 continuous modulating control
  • Option for process control through its on-board PID controller
  • Adjustable opening and closing speeds

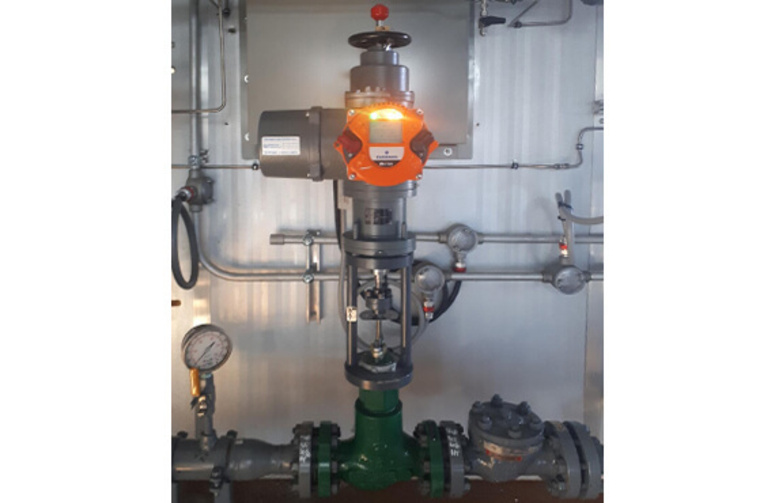

Spartan Controls Bettis™ RTS

Spartan Controls Bettis™ RTS

Precise Process Control
  • Provides high speed and high accuracy control-0.1%
  • Provides On/Off or S9 continuous modulating control
  • Option for process control through its on-board PID controller
  • Adjustable opening & closing speeds
  • Low power
  • Fail safe and last

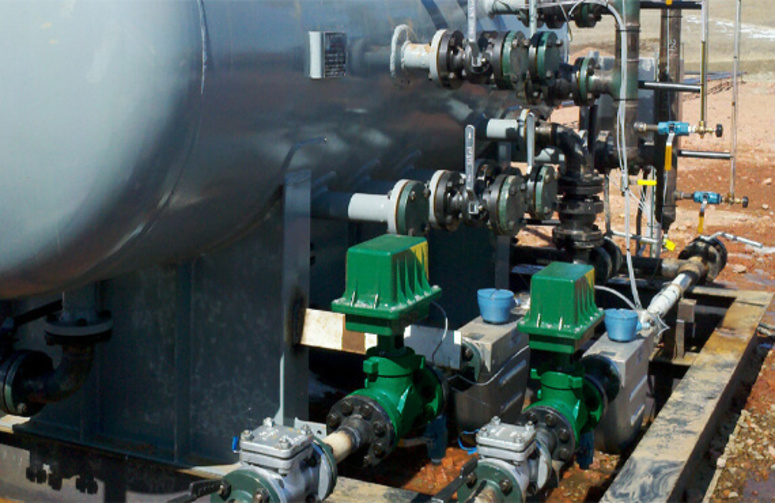

Fisher™ Easy Drive Actuators

Fisher™ Easy Drive Actuators

Features
  • Zero venting of product to atmosphere/no bleed
  • 4-20mA, 1-5V, or Modbus
  • On/Off throttling
  • Designed for stable operation, simple set-up
  • Low power requirements, economical vs. competition
    • 12 or 24VDC
    • Max current draw of 3.5A
    • Draws below 1W resting
Range
  • 1st and 2nd Fisher™ D3E & D4E valves (or 200L standalone)
  • Thrust up to 750 lbf

Modulation
  • Rated for 50% duty cycle
  • 0.5% accuracy

Protocols
  • Modbus (serieal or USB modem), digital aux I/O, 4-20mA

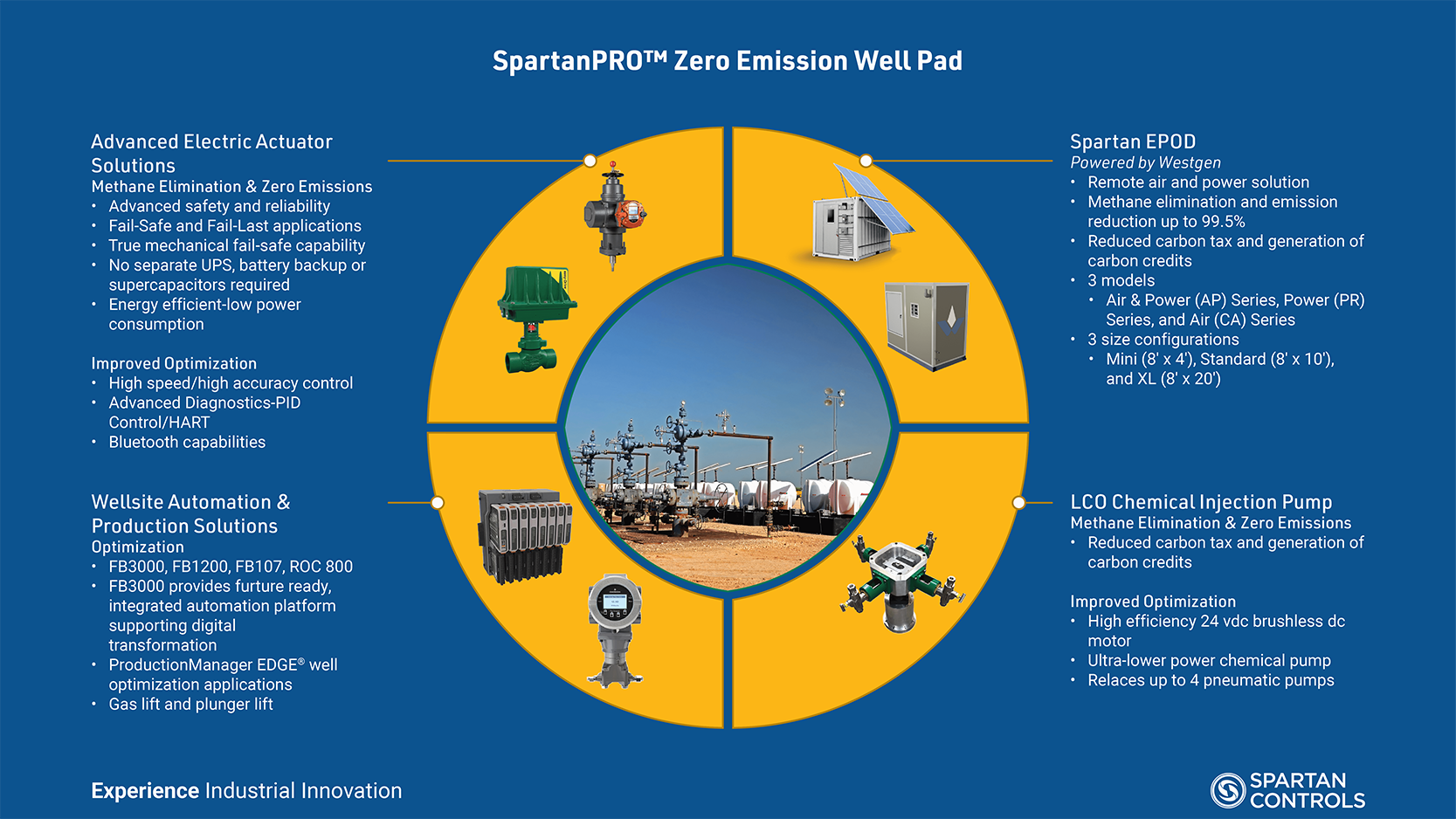

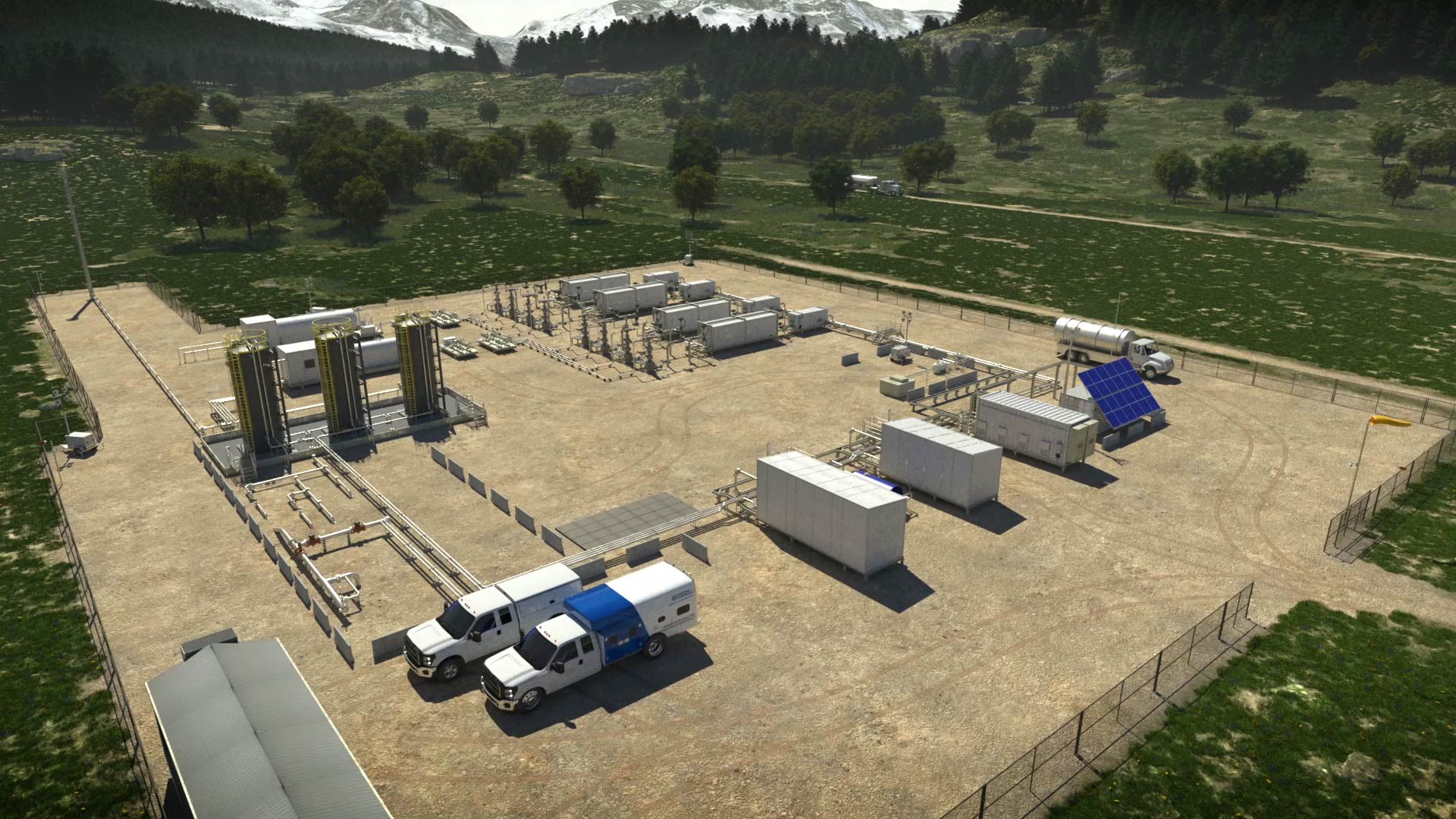

Spartan Controls Fully Integrated Wellpad Solution

Spartan Controls Fully Integrated Wellpad Solution

  • Rosemount™ Pressure Transmitters
  • LCO Chemical Pump
  • FloBoss 107
  • FB3000

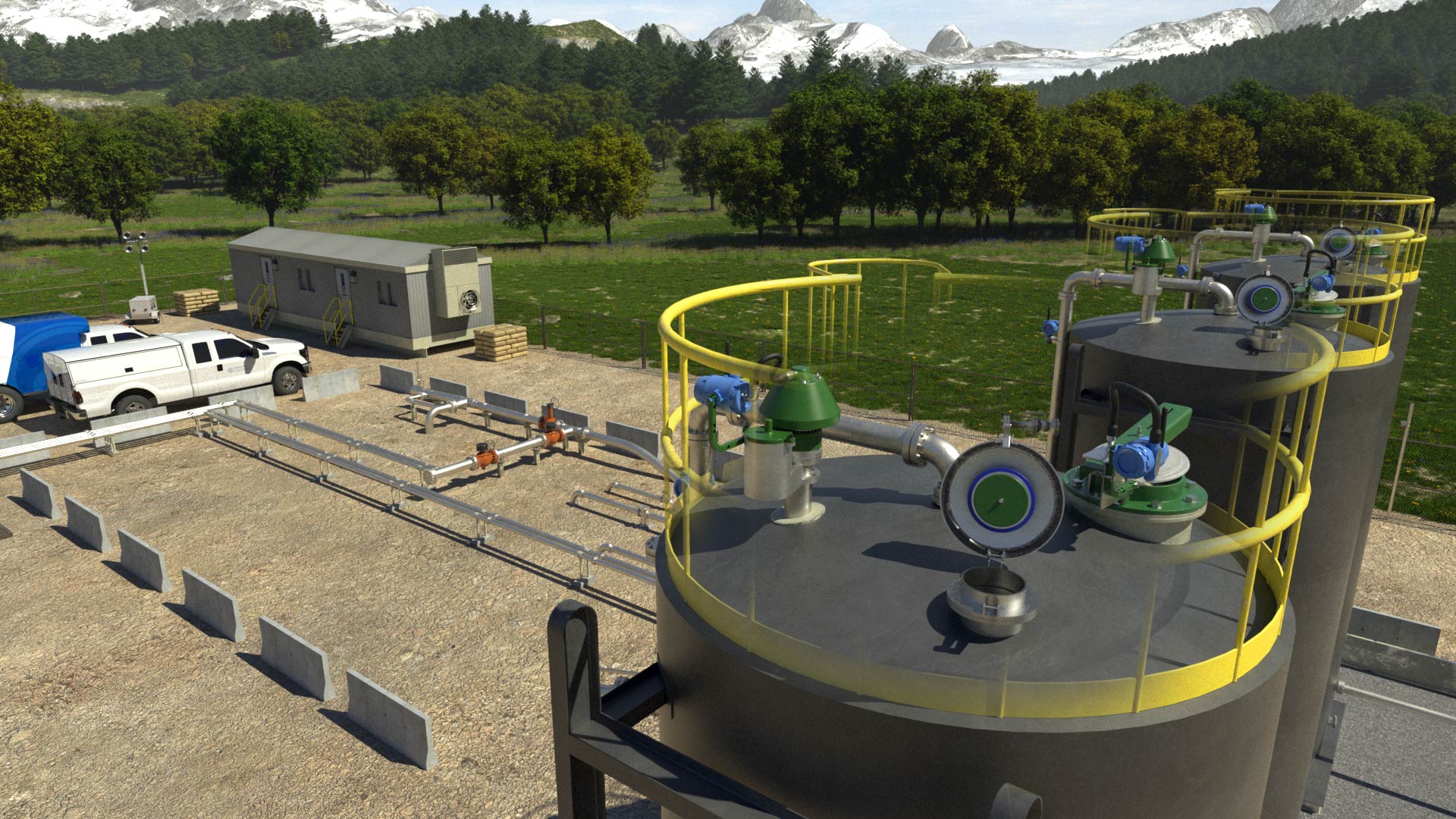

  • Tank Protection & Regulation
  • Digital Transformation

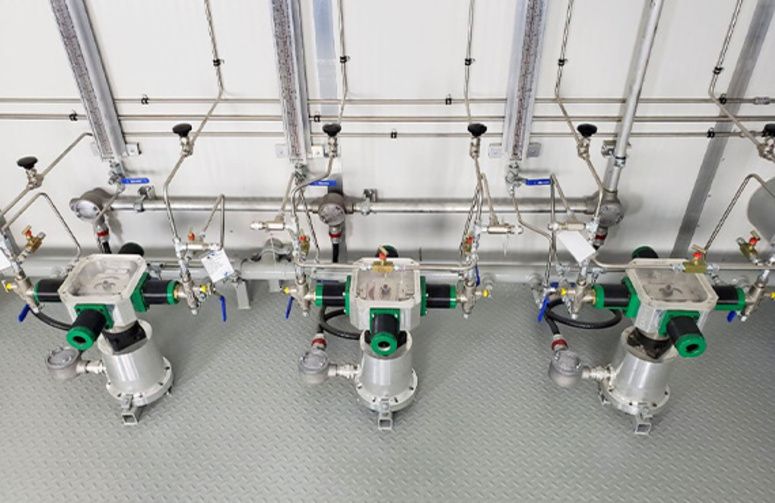

LCO Chemical Injection Pump

LCO Chemical Injection Pump

Eliminate methane emissions and minimize chemical waste all with the same reliability as a pneumatic pump.

Features
  • 24VDC highly efficiency motor
    • Powered by solar for remote locations
  • Precise chemical injection
    • Delivers chemical proportionate to flow
    • Max volume 720L/day
    • Max pressure 10,000 PSI
  • Replaces up to four pneumatic pumps
  • High system autonomy
    • Ultra-low power chemical injection pump - run weeks on most applications
  • Standard 5100 series fluid ends
  • CROSSFIRE Smart Controller
    • Modbus communication as standard
  • Option to upgrade to advance controller
  • Explosion proof motor assembly
    • Class 1, Division 1 Group CD T6 explosion proof motor assembly
    • Rated input 24VDC, 9.9 amps, 750 rpm, Class B
    • Ambient temperature -40°C to 60°C
