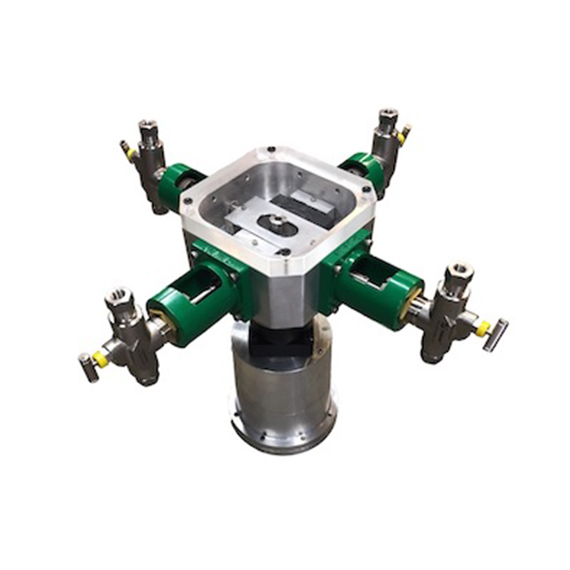

The CROSSFIRE is an ultra-low power, high efficiency chemical injection pump which reduces venting of methane from pneumatic-driven pumps.
The device can reliably run off solar power and can be configured for one to four 1-4 fluid ends allowing it to replace up to four pneumatic chemical injection pumps with one unit reducing your carbon footprint.
It is a highly customizable unit with a robust controller and intuitive interface which allows for easy field integration and implementation. It can inject <1L/day to 720L/day up to 10,000psi and for most applications, draws significantly less than 1 A of power with no inrush yielding to extremely long system autonomy. When delivering 10L/day and operating against 500psi, this pump draws less than 100mA. Operating on batteries alone, this allows the system over 5 weeks autonomy in the field.
