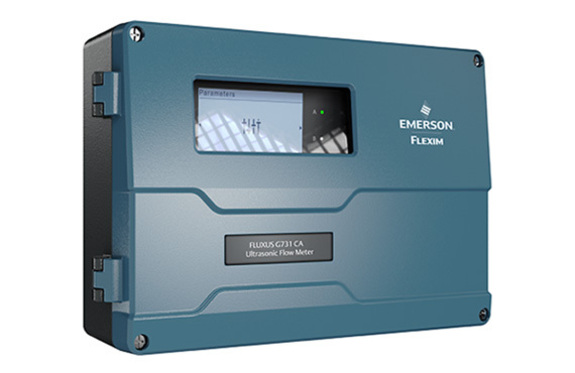

The Flexim FLUXUS G731 CA is a specialized clamp-on ultrasonic flow meter designed for precise, non-intrusive measurement of compressed air flow—even at extremely low pressures. Its advanced technology allows accurate monitoring on steel pipes down to 3 bar and even at atmospheric pressure when used on plastic piping.

This innovative system is capable of detecting minimal flow rates, making it highly effective for identifying small leaks and optimizing air usage. The G731 CA is especially well-suited for monitoring consumption at individual take-off points within a compressed air distribution network, as well as for leak detection and efficiency analysis across the system.

By eliminating the need to cut into piping, the meter provides a seamless, maintenance-free installation with no disruption to ongoing operations—ideal for facilities aiming to improve compressed air efficiency while reducing operational costs.

Ultrasonic Clamp-On Flow Meter Rentals

Connect with our Team at Spartan Controls for a conversation about your flow application. Our team of flow experts will help you discover the optimal solution for your flow measurement needs.

Learn More
Get in touch with an expert, find your nearest office location, or send us a note about your next project!!
Talk to one of our experts in this field
+1 (877) 278-6404
+
Talk to an expert
FLEXIM Winterization Enclosure Datasheet
FLEXIM Winterization Enclosure Datasheet
FLEXIM Start-Up Service Prerequisites Brochure
FLEXIM Start-Up Service Prerequisites Brochure
FLEXIM Rental Process
FLEXIM Rental Process
Flow Measurement Services
Flow Measurement Services
Flexim FLUXUS G731 CA Non-intrusive Compressed Air Flow Meter

Specs

Fluid type
Air, nitrogen, oxygen, helium, argon
Accuracy
Measurement uncertainty of the measuring system (volumetric flow rate): ±0.3 % of reading ±0,005 m/s (±0.02 ft/s)
Measurement uncertainty at the measuring point (volumetric flow rate): ±1 to 2 % of reading ±0,005 m/s (±0.02 ft/s)
Repeatability
0.15 % of reading ±0,005 m/s (±0.02 ft/s)
Range
Flow Velocity Range: 0,01 to 35 m/s (0.03 to 115 ft/s), depending on pipe diameter
Certifications/Approvals
FM Class I /Div 2
ATEX/IECEx Zone 2
Power supply
90-264VAC
11-32VDC
Pipe size
10 to 250 mm (0.39 to 9.8 inch)
Pressure range
1barg (15 psig) to unlimited
Temperature range (media)
-40 to +130°C ('-40 to +266°F)
Output
4-20mA active/passive
4-20mA HART® active/passive
pulse/frequency/binary
Input
Temperature
4-20mA active/passive
Communication Protocol
Modbus RTU/TCP
BACnet MSTP/IP
Profibus PA
FOUNDATION Fieldbus
M-Bus

Features

  • Non-intrusive compressed air and technical gas flow measurement from 3 bar absolute onwards.
  • Available as a dual channel meter, stainless steel housing, ATEX/IECEx and FM approval.
  • Integrated standard volume flow calculation.
  • Extreme measurement dynamics from lowest to highest flow velocities - easy detection of leakages and load peaks.
  • Bi-directional measurement, able to detect back-flow.
  • Simple and cost-effective retrofitting without shut down.
  • USB and LAN interface.
  • Communication interfaces Modbus TCP, Modbus RTU, BACnet MS/TP, BACnet IP, M-Bus.
  • Advanced Meter Verification.
  • ISO 24062 compliant.
  • Flow disturbance correction to reduce required straight runs down to 2D inlet.
