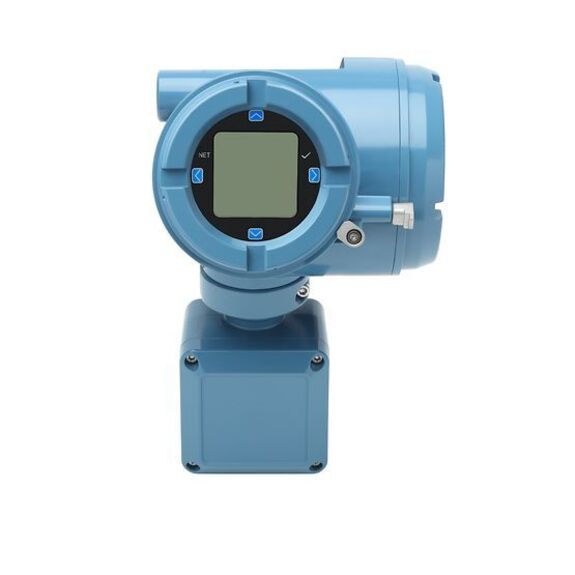

The Micro Motion 4700 Transmitter features a compact C1D1 (Zone 1) housing, scalability from one to three output channels with configurable and licensed options, and backwards compatibility with 4-wire and 9-wire systems. It is fully configurable via the local operator interface.

The optional data historian enables access to time-stamped process and meter diagnostic data. The optional Bluetooth® display allows for wireless configuration, helping to avoid the need for a hot work permit and enhancing productivity and safety by reducing time spent in potentially hazardous areas.

Smart Meter Verification Basic is included as standard, providing assurance that the meter is functioning correctly.

Software Modbus Interface Tool Version 12

Download
Micro Motion™ 4700 Coriolis Configurable Inputs and Outputs Transmitter

Specs

Environmental Specifications
Operating: -61 °F (-52.0 °C) to 149 °F (65.0 °C)
Vibration Limits
Meets IEC 60068-2-6, endurance sweep, 5 to 2000 Hz up to 1.0 g.
Housing
Transmitter NEMA 4X (IP66/67/69) polyurethane painted cast aluminum
Humidity Range
The humidity limits are 5 to 95% relative humidity, non-condensing between -40 °F (-40.0 °C) to 149 °F (65.0 °C).
Input Signal
Input/Output: Up to 3 pairs of wiring terminals for transmitter input/output and digital communications. Screw terminals accept solid or stranded conductors, 26 AWG (0.129 mm²) to 14 AWG (2.08 mm²).
Sensor Type
4-wire remote mount – 4 terminals for connection to 4-wire sensor
Service
(Hart) Two clips for temporary connection to the service port
Power Supply
Universal (self-switching) with a supply voltage range of:
Housing
NEMA 4X (IP66/67) polyurethane-painted cast aluminum. Available with 1/2 in NPT or M20 conduit connections
Weight
Integral mount version 6.48 lb (2.939 kg)
Cable Glands
Two 1/2 in –NPT or M20 x1.5 female conduit port
Mounting
Available integrally mounted to the following Coriolis sensors: CMF200 - CMFHC4, CMFS007 - CMFS150, F025-F400, G025 - G300, H025-H400, R025-R300, T025-T150
Display/Interface
Standard user interface with LCD panel

Features

  • The Micro Motion 4700 transmitter, with configurable inputs and outputs, enables the use of reliable and accurate Micro Motion Coriolis meters for flow measurement applications. It offers flexibility in outputs and diagnostics, delivering measurement accuracy, repeatability, and operational savings.
  • Compact, integral-mount transmitter design reduces electrical costs and saves space—ideal for integrated systems and skids.
  • Direct mass measurement enhances process control and reduces the need for multiple measurement devices.
  • Smart Meter Verification™ gives you confidence in meter performance.
  • Zero verification confirms calibration and indicates when re-zeroing is required.
  • Easy access to detailed measurement history provides valuable insights for troubleshooting and process optimisation.
  • Real-time indication of multiphase flow events allows for improved process control.
  • High-accuracy density measurement helps reduce or eliminate waste, while the embedded historian records process upsets and deviations every second for 11 days and every five minutes for one year.
  • Designed for ease of installation and operation, minimising the time and expertise required.
  • Certified SIL2/3 capable (for single or multiple meters) in accordance with IEC 61508.
  • Wireless THUM™ option maximises installation and operational flexibility.
