Chemical Injection Pump

Efficiency, Adjustability, Reliability

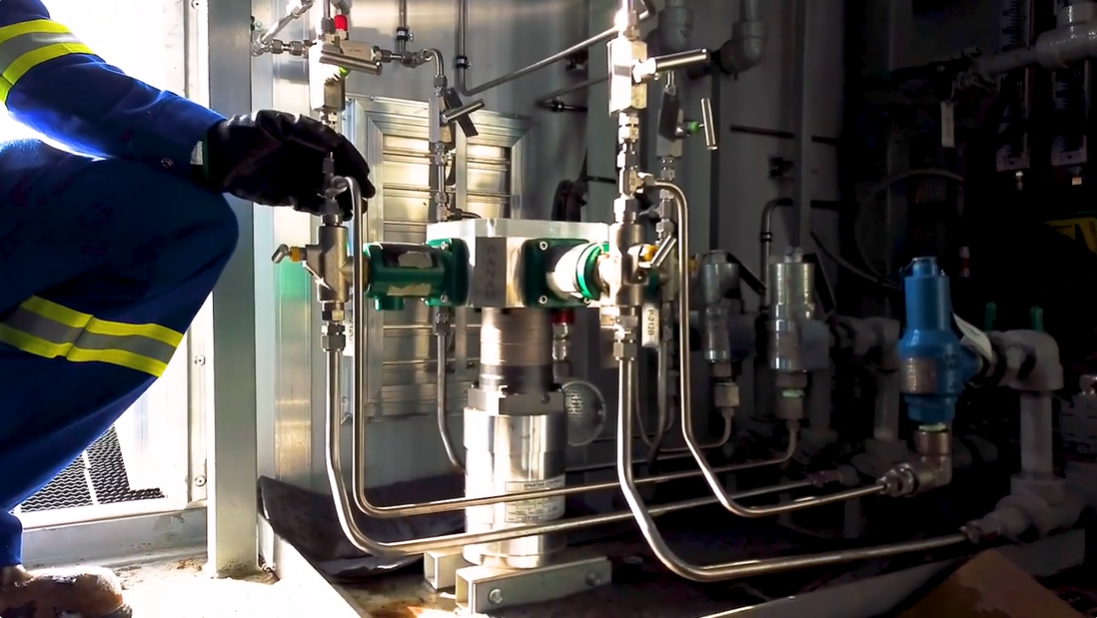

Chemical injection is essential in oil and gas facilities. Whether you are operating in a remote location with limited power or handling costly, specialized chemicals, this Chemical Injection Pump is designed to adapt to and enhance your operation.

Each pump features the proven, low-power platform used across the CROSSFIRE lineup, combined with up to four chemical injection heads for maximum flexibility and control.

Features

5100 Series Fluid Ends
- Up to 4 fluid ends per pump
- Multiple injection points
- Multiple injection rates
- Multiple injection pressures
- Improve efficiency by splitting injection to multiple heads
- Standard 2-piece suction check valves for ease of maintenance
- Adjustable thrust rods allow for fine tuning of injection rates

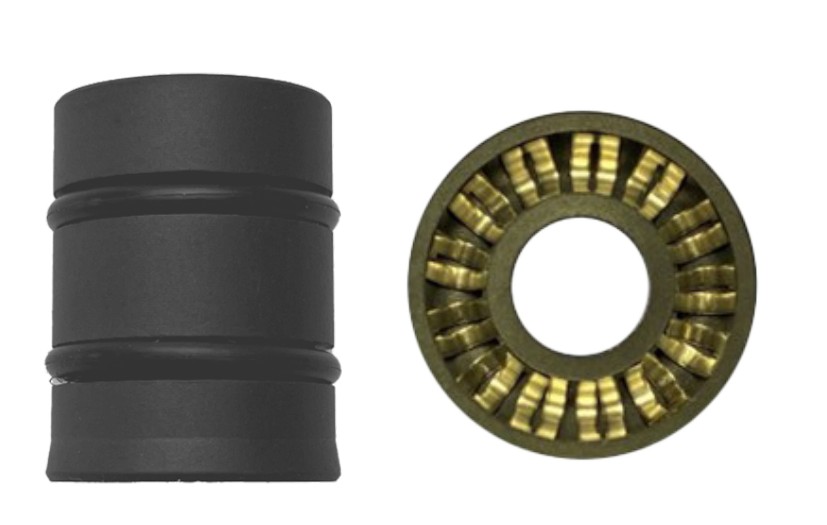

One N Done Packing
- Proprietary cartridge packing solution made from a universally compatible material
- XF1 O-rings for low temperature applications
- XF2 O-rings for maximum chemical compatibility
- Non-adjustable to ensure maximum efficiency
- Built in wiper to increase service life
Smart Controller
- MODBUS 232/485 and Ethernet standard
- Onboard IO
- Built in control strategies such as Freeze Protection and Proportional Control
- Built in Soft Stop feature
- C1D2 certification
- Field firmware updateable
User Interface
- App based and PC based user interface
- Password protected
- Built in diagnostic tools
- Regular updates to keep your equipment current
- Chemical Calculator for easy specification and setup
24VDC Motor
- Soft start technology prolongs battery life and extends autonomy
- Ultra-low power draw
- High torque for maximum injection pressures and rates
- C1D1 certification

The revolutionary self-adjusting, one-piece packing solution that simplifies material choice for chemical compatibility.

While the cartridge material remains standard and always includes a 100-6000psi injection pressure capability and a built-in wiper to clean the plunger and prolong service life, there are 2 O-ring choices available to meet the necessary requirements of specific applications.

XF1 O-Ring	XF2 O-Ring
-65C to 150C	-7C to 230C
Wide chemical compatibility	Highest chemical compatibility possible
Excellent low temperature performance	Limited low temperature performance
100psi-6000psi pressure range	100psi-6000psi pressure range
Built in wiper to prolong lifespan

Material Chemical Compatibility Comparison

V-Packing Material	XF1	XF2
Buna N (Nitrile)	Superior	Superior
EPDM	Superior	Superior
Fluorosilicone	Equivalent	Superior
Viton (FKM)	Equivalent	Equivalent
Kalrez (FFKM)	Comparable	Equivalent
Teflon (PTFE)	Comparable	Comparable

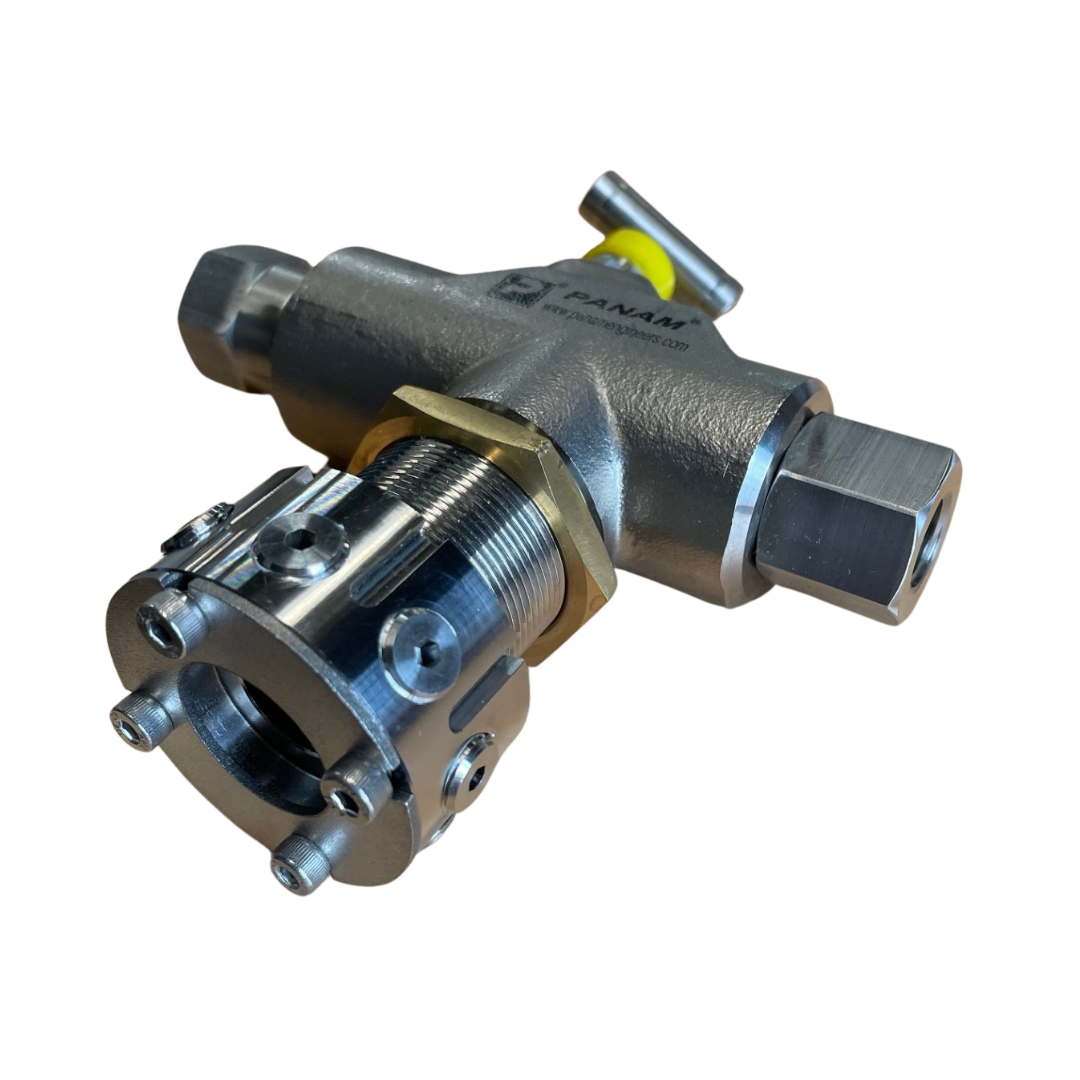

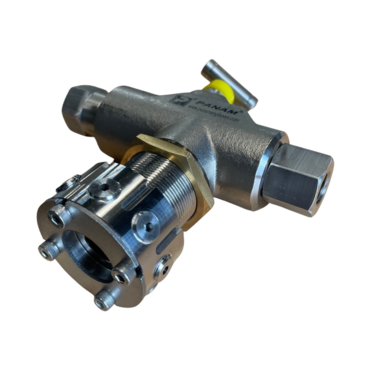

Simple, robust and innovative solution for secondary containment of chemical which pairs with the One N Done packing to ensure chemical stays sealed in the event of a packing failure.
