Quality is DHV’s commitment, while competitive price and timely delivery is their promise.
From the beginning, the DHV name has become associated with quality in every step of our manufacturing process. For the past decades DHV’s customers worldwide have trusted DHV to provide them with consistent and reliable valve products in their most severe and critical service. DHV is proud of the ability to meet stringent requirements of refining, gas / oil, pipeline, petrochemical and power plant. DHV Ball Valves are designed, manufactured and tested to the latest manufacturing specifications of American & International Standards Organizations

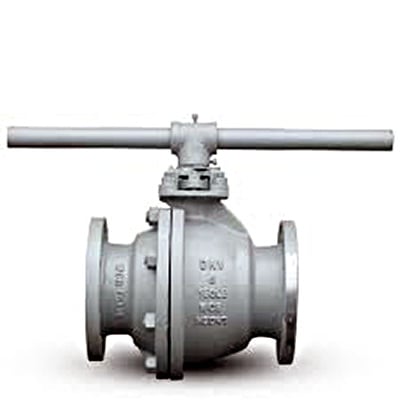

DHV Floating Ball Valve

Specs

Sizes
NPS ¼” to 12” Full Port / Reduced Port
Pressure Ratings
ASME 150CL to 1500CL and 2000WOG to 6000WOG
Configurations
1 Piece / 2 Piece / 3 Piece Body Designs
Temperature Range
-49F to 482F / -45C to 250C
Design Standards
ASME B16.34, BS5351, API 608, ASME B16.10, ASME B16.5, ASME B2.1 NPT, ASME B16.11, API 607, NACE, CRN

Features

  • 1 Piece / 2 Piece / 3 Piece Body Designs
  • Raised face flanges / NPT threaded / socket weld / pup ends
  • Full and reduced bore
  • Cast and forged steel components
  • Fire safe certified
  • Anti-blowout stem design (API 608)
  • Anti-static device
  • Low emissions
  • ISO mounting pad (upon request)
  • Locking device (upon request)
