Instrument Air Compressor

Supplying pneumatic devices with a clean gas source is a challenge in remote oil and gas operations. As the industry moves toward eliminating emissions sources, the CROSSFIRE Air Compressor offers a cost-effective, reliable, and efficient solution for converting these remote sites to instrument air.

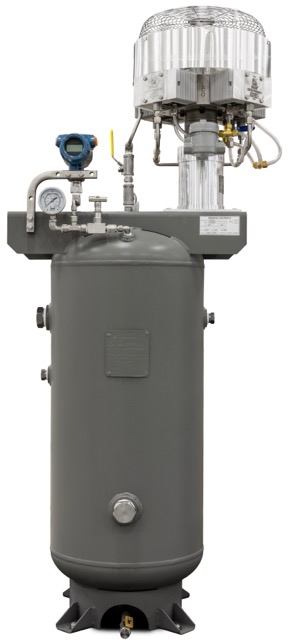

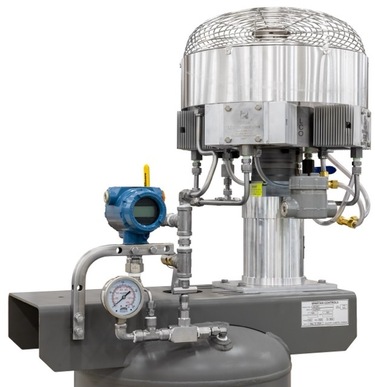

The CROSSFIRE Air Compressor leverages the proven, low-power platform used across the CROSSFIRE lineup. It uses positive displacement to deliver instrument air at rates exceeding 1,400 SCFD at 36 psi, or at pressures up to 100 psi. This adaptability enables a single device to address multiple challenges while operating reliably and autonomously with remote power solutions such as solar installations.

Features

  • Positive displacement compressor heads
    • V2 Ball and seat style check valves
    • Built in heat sinks and fan
    • V2 Crosshatched cylinders
    • V2 Robust piston ring seal
    • Seals and materials selected for maximum efficiency
  • Long service life topworks
    • Open bearing
    • Oil filled topworks
    • Thrust rod seals
  • Smart Controller
    • MODBUS 232/485 and Ethernet standard
    • Onboard IO
    • Built in control strategies such as On/Off (discreet) mode and Proportional control
    • Built in Soft Stop feature
    • C1D2 certification
    • Field firmware updateable
  • User Interface
    • App based and PC based user interface
    • Password protected
    • Built in diagnostic tools
    • Regular updates to keep your equipment current
    • Dropdown menu based control selections for ease of programming
  • 24VDC Motor
    • Soft start technology prolongs battery life and extends autonomy
    • Low power draw
    • C1D1 certification
The LCO CROSSFIRE Platform is a complete ultra-low power solution. Together with LCO Technologies, Spartan Controls is paving the way for achieving positive environmental outcomes by introducing technologies.
