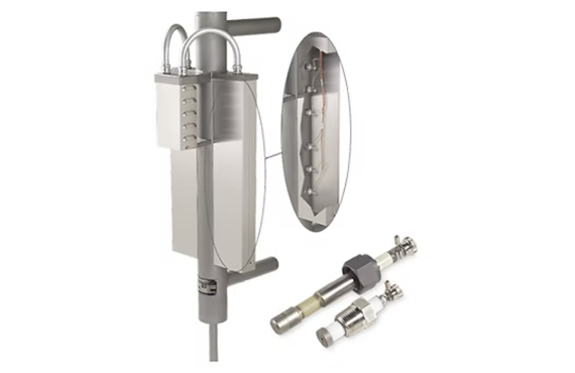

TYPES HP (HIGH PRESSURE) / IP (INTERMEDIATE PRESSURE) / LP (LOW PRESSURE)

TYPES HP (HIGH PRESSURE) / IP (INTERMEDIATE PRESSURE) / LP (LOW PRESSURE)

Based on conductivity probe technology, they are specially designed to meet increasing demand for a reliable, cost effective means of sensing water level in boiler and various other applications.

Features

  • Probes can be mounted directly to the pressure vessel or column.
  • HP probes feature brazed welded stainless steel electrode with zirconia insulator for high pressure, high temperature applications.
  • LP probes feature threaded stainless steel electrode with PTFE insulator for lower pressure and temperature applications.
  • Custom fittings available with probe adapter.
  • PED 97/23/EC conformance available.

Technical Data

Water Columns Max. Pressures

HP water column: 3000 psig (207 barg ) at saturation
IP water column: 1800 psig (124 barg) at saturation
LP water column: 850 psig (58 barg) at saturation

Probes Max. Pressures

HP probe: 3000 psig (207 barg ) at saturation
LP probe: 850 psig (58 barg) at saturation

Probes Max. Temperatures

HP probe: 1000°F (538°C)
LP probe: 525°F (274°C)

HP Probe Fittings

NPS 1½” (40 mm) socketweld male adapter
NPS 1½” (40 mm) tee Type ‘A’

LP Probe Fittings

NPS 1 (25 mm) socketweld male adapter
NPS 1½” (40 mm) socketweld male adapter
