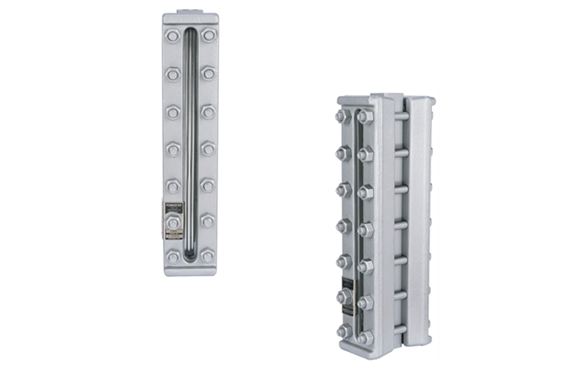

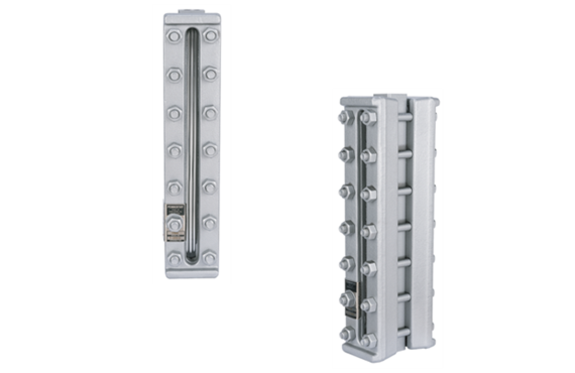

Penberthy Models RM and TM Direct Reading Liquid Level Gauges

Reliable, easy to understand level reference.
Gives users the ability to inspect liquid characteristics visually (transparent style).
Non-intrusive
Operation is independent of most liquid characteristics. Multiple liquids can be processed through the same vessel without concerns for density, surface turbulence, dielectric conductivity etc.

Features

No electrical power required. Provide accurate direct liquid level measurement in remote locations where power is not available. Not affected by power failures.
Suitable for full vacuum applications.
Provide a near-unlimited length of measure.
Optional offshore coating 2600 protection; ideal cost-effective solution for corrosive offshore environments.
NACE materials available for sour gas service both wetted and environmental.
Used for verification of other level instrument technology.
Optional recessed gasket chamber available.
Standard flat gasket seat allows easy removal of gasket residue during rebuild.
Optional shields available to prolong glass life in corrosive environments (transparent style only).
Cross ties between vision slots in transparent style gauges provide higher strength chamber due to reduction of unsupported beam length
