The P1000 drive provides simple, reliable, cost-effective control for variable-torque loads through 1000 HP.
Specific application features, energy savings, and network connectivity make the P1000 a great choice for industrial fans and pumps.

Yaskawa P1000 Series AC Drive Basic Start-Up

Play Video

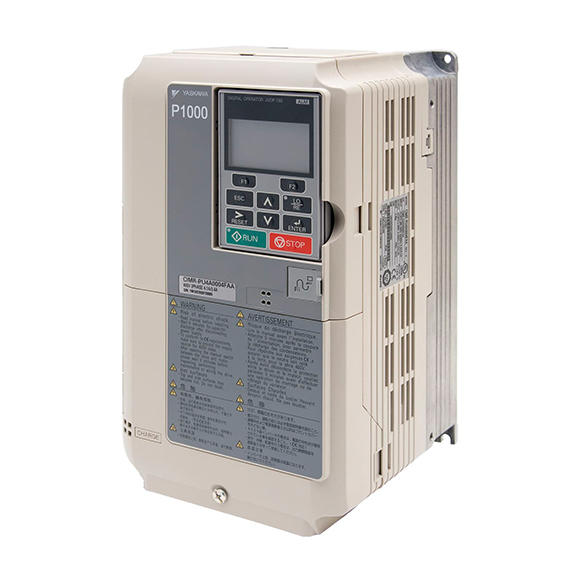

Yaskawa P1000 Drive

Specs

Continuous Load Capacity
Variable Torque (square of percent speed)
Intermittent Load Capacity
120% for 60 seconds
Output Frequency
0.01 to 400 Hz
Ambient Operating Temperature
-10°C to 40°C (14°F to 104°F)
Global Certification
UL, CSA, CE, RoHS, C-Tick

Features

  • LCD Operator with Real Time Clock
  • Application Macros
  • Selectable and Custom Engineering Units
  • Underload Detection
  • Parameter Storage and Removable Terminal Board
  • PI Process Control
  • Power Quality
