Spartan Control’s PowerVue™ Switchgear and Motor Control Centres (MCC) are engineered to accelerate project timelines while reducing installation, commissioning, and lifecycle costs for medium-voltage power distribution systems.

Our modular architecture and innovative assembly process provides flexibility to project managers, engineers, and electricians, ensuring systems can be configured, expanded, and delivered to meet evolving project requirements.
Connect with a Specialist & Book a Tour
BOOK A TOUR

Connect with a Specialist & Book a Tour

Book an appointment and/or tour with a specialist to discuss your electrification applications.
Book here







Our switchgear & MCCs are designed and assembled in Calgary, AB, Canada.

Features

  • Reduced Start-up time | Spartan PowerVue™ can be equipped with built-in DeltaV™ to significantly reduce site installation and commissioning time.

  • Increased Safety | Protect personnel and equipment by reducing arc flash risk with optional integral arc quenching technology.

  • Expandability & Flexibility | All Spartan PowerVue™ Switchgear and MCC lineups are designed to be joined together and expanded on either side, allowing customers to scale power distribution as requirements grow.

  • Robust Metal-Clad Construction | Fully compliant with IEEE C37.20.2 standards, our design features grounded metal barriers that physically isolate the bus, cable, and breaker compartments. This heavy-duty compartmentalization prevents fault migration and ensures maximum operator safety and system reliability.

  • Lower Installed Cost | Flexible mounting and device integration options simplify construction and reduce overall project costs. Bringing new names to the market Hyundai for a reliable, cost competitive solution.

  • Integrated Smart Monitoring | Enhance reliability with optional real-time sensors for temperature, humidity, and partial discharge. Integrated thermography identifies thermal hot spots and insulation breakdown before they lead to failure, significantly reducing unplanned downtime through predictive maintenance.

  • Easy Maintenance | Featuring a fully insulated bus system that minimizes or eliminates partial discharge (PD). By reducing electrical stress and environmental tracking, this design ensures a longer equipment life cycle.

  • Reduced Cost | Streamline your project with flexible mounting and seamless device integration options that simplify construction. We bring Hyundai to the market, a globally recognized name providing a reliable, high-performance, and cost-competitive solution.

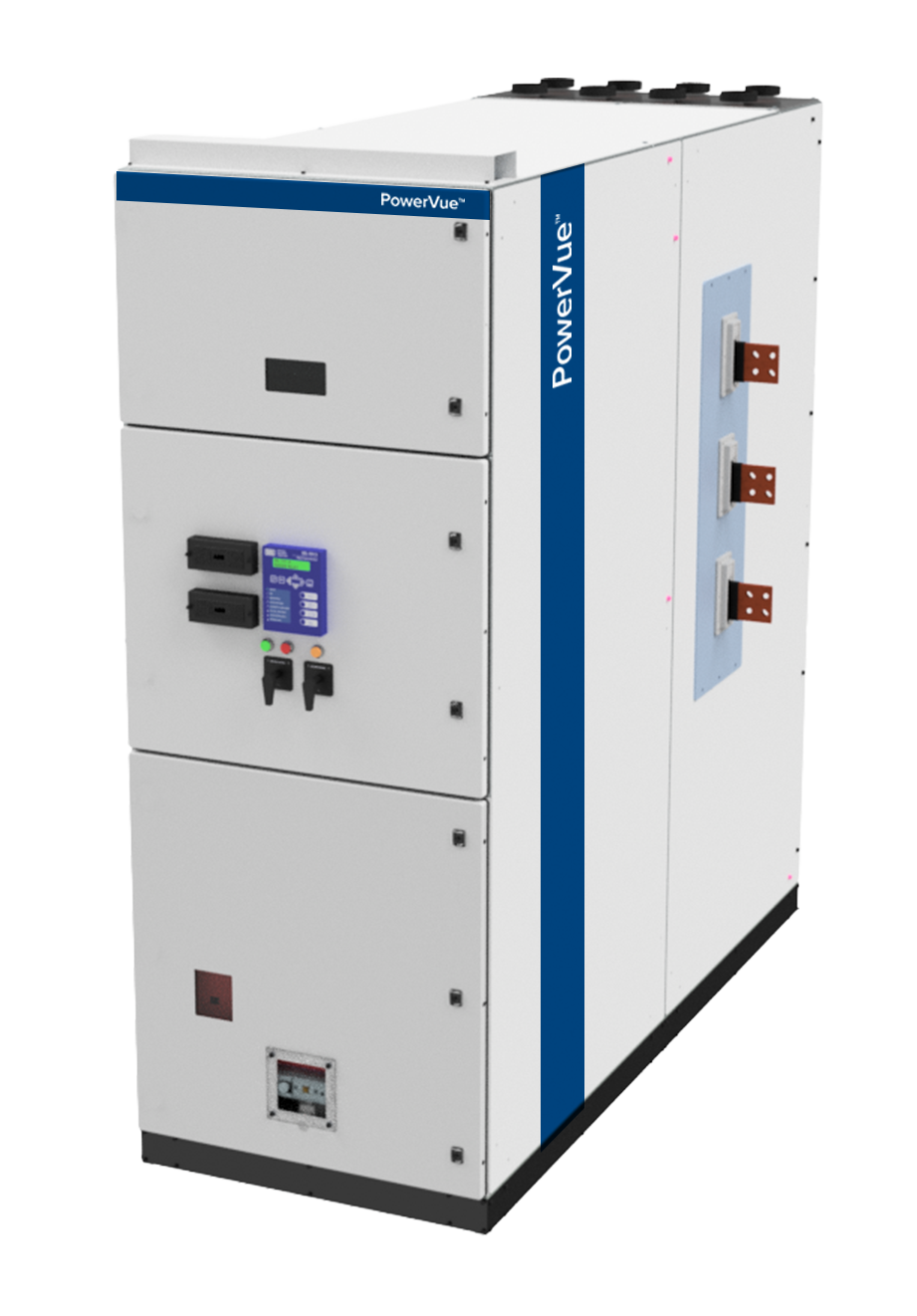

PowerVue™ MV

Specs

Manufacturer
Spartan Controls
Switchgear Type
MetalClad IEEE/ANSI C37.20.2, CSA 22.2 No 31

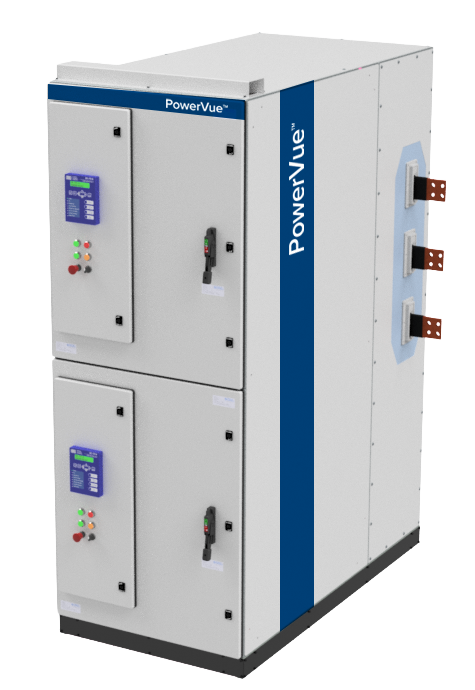

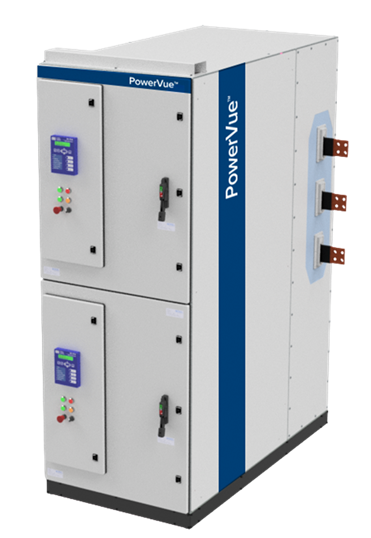

MCC Type
Motor Control Center, CSA 22.2 No.253, UL347
Switchgear Dims (H x W x D)
2438mm (96”) x 908.5mm (35.7”) x 2338mm (92”)
MCC Dims (H x W x D)
2438mm (96”) x 908.5mm (35.7”) x 1796mm (69.6”)
Enclosure
NEMA 1A
Cable Entry
Top and Bottom
Voltage Ratings
4.16 kV and 13.8 kV
Current Ratings
400A / 800A / 1200A / 2000A / 3000A
Interrupting Current (SCCR)
40 kA – 50 kA
Drawout VCB
Hyundai HVF / ABB ADVAC
Cell Configuration
Single or Two-High
Protection Relay
GE Multilin / SEL / Arcteq
Arc Protection
Arc Quenching Technology
DCS Connectivity
Native DeltaV OnePlant
