Hyundai’s medium voltage motors (Totally Enclosed & Weather-Proof) are found in a variety of industry applications including pumps and compressors.

TEAAC, TEWAC, WP-I, WP-II enclosures
NEMA, API-547/541 designs available
2-year warranty (extended warranty available)

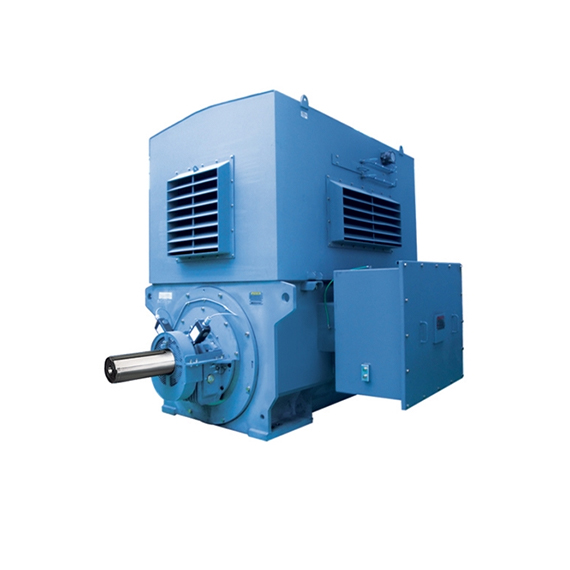

Hyundai Medium Voltage Motors Totally Enclosed & Weather-Proof

Specs

Output Range
500 HP to 30,000 HP
Frame Size
IEC
Phase & Voltage
3-Phase, 50 / 60 Hz
Poles (RPM)
2 (3600 RPM) to 36 (200 RPM)
Service Factor
1.15 at 40°C ambient
Duty
Continuous (S1)
Institution/Temp. Rise
Class F/B
Approvals
CSA, CSAUS, CC (Compliance Certificate)
