The Crown Triton line are cast-iron, NEMA frame, Totally Enclosed Fan Cooled (TEFC) motors designed for a variety of industry applications.

These motors use Hyundai’s Inverter Shield design and exceed NEMA MG1, MG1 Part 31 and IEC efficiency requirements.

In-Stock (up to 250 HP)

3-year warranty (extended warranty available)

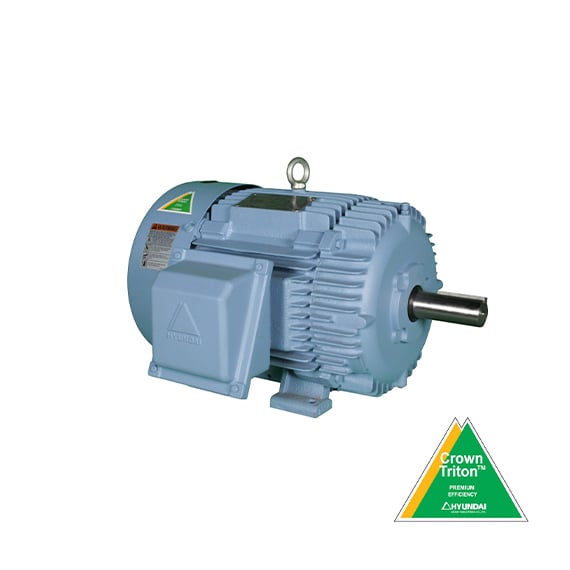

Hyundai Crown Triton Motors (Premium Efficiency)

Specs

Output Range
1 HP to 250 HP
NEMA Frame
143T to 449T
Phase & Voltage
3-Phase
Poles (RPM)
2 (3600 RPM), 4 (1800 RPM), 6 (1200 RPM), 8 (900 RPM)
Service Factor
1.15 at 40°C ambient
Duty
Continuous (S1)
Institution/Temp. Rise
Class F/B
Approvals
CSA, CSAUS, EEV mark, CC (Compliance Certificate)
