Crown Triton and IEEE-841 motors above 250HP are Totally Enclosed Fan Cooled (TEFC) motors.

These motors are designed for a variety of industry applications where motors larger than NEMA frame are required and can be designed to your needs.

In-Stock (up to approx. 500 HP)

2-year warranty (extended warranty options available)

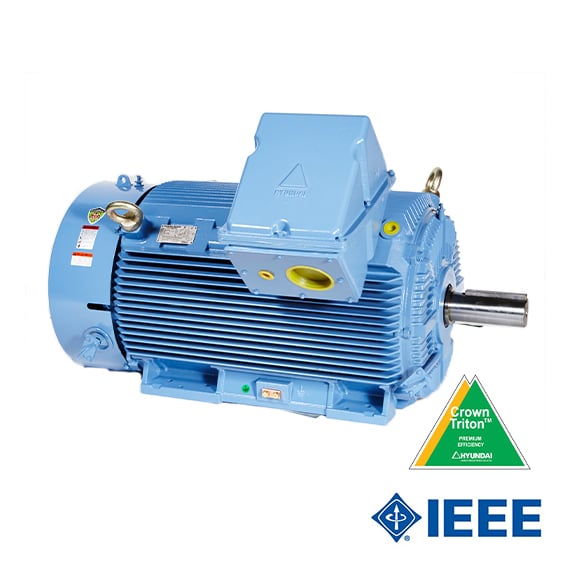

Hyundai Crown Triton & IEEE-841 Motors (> 250 HP)

Specs

Output Range
250 HP to 1,000 HP
Frame
L449 to 5812
Phase & Voltage
3-Phase
Poles (RPM)
2 (3600 RPM), 4 (1800 RPM), 6 (1200 RPM), 8 (900 RPM)
Service Factor
1.15 at 40°C ambient
Duty
Continuous (S1)
Institution/Temp. Rise
Class F/B
Approvals
CSA, CSAUS, EEV mark, CC (Compliance Certificate)
