Suitable for all process and automation control, hydraulics and pneumatic sensing, pump and compressor monitoring, refrigeration and HVAC.
Our website uses cookies. By continuing to browse our site you are agreeing to our Cookie Policy.

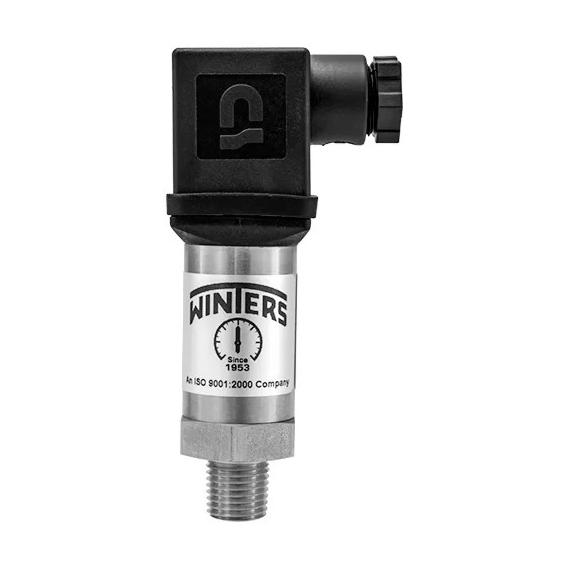

Winters LE3 General Purpose Pressure Transmitter
Winters LE3 General Purpose Pressure Transmitter
Specs
Output Signal:
Standard 2-wire: 4-20 mA / Vs = 8-32 Vdc
Optional 3-wire: 0-10 V / Vs = 14-30 Vdc
Optional 3-wire ratiometric: Vsig = 0.5-4.5 Vs / Vs = 5 ± 0.5 Vdc
Optional 3-wire: 0-10 V / Vs = 14-30 Vdc
Optional 3-wire ratiometric: Vsig = 0.5-4.5 Vs / Vs = 5 ± 0.5 Vdc
Accuracy:
±0.5% FSO
Permissible Load:
2-wire: Rmax = [(Vs – Vs min) / 0.02] Ohm
3-wire: Rmin = 10 kOhm
3-wire: Rmin = 10 kOhm
Features
- Developed for use in general industry and OEM applications, where versatility and economy are requirements
- Compact stainless steel construction with ceramic sensor
- Available ranges include in/Hg up to 5,000 psi
- Wide range of mechanical and electrical connections
- ±0.5% accuracy
