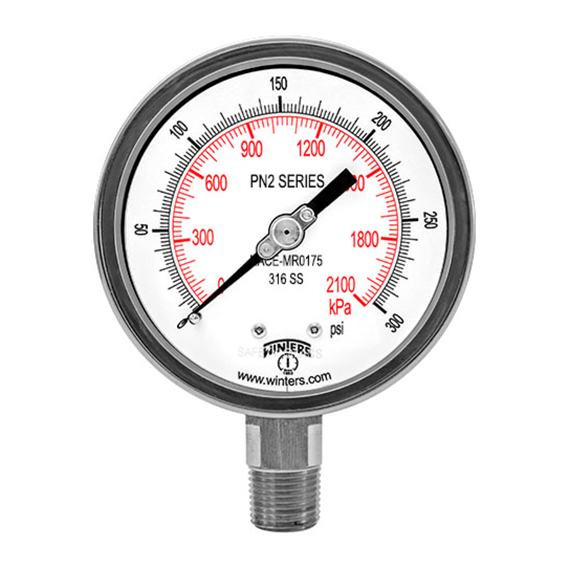

Winters PN2 NACE LIQUID FILLED PRESSURE GAUGE-MR0175-2002

Name: Winters PN2 NACE LIQUID FILLED PRESSURE GAUGE-MR0175-2002
Brand: Winters

This model is designed for sour gas applications requiring NACE Standards MR0175-2002 (NACE Standards MR0103-2003 available).

The equipment features a stainless steel case, dial sizes 4 inches (100 mm), blow out back plug standard and under and overload stops. Wetted parts meet hardness requirements. The PN2-ZR model conforms to ASME B40.100 is CRN registered and comes with a 5-year warranty.

Specs

Dial

4” (100mm) and 6″ (150mm) aluminum with black and red markings

Case

Laminated safety glass

Ring

304 SS, bayonet

Socket

316L SS

Connection

1/4” or 1/2” NPT, bottom or back

Movement

304 SS with under and overload stops

Fill Liquid

Glycerin and H2O filled case

Features

Designed for sour gas applications requiring NACE Standards MR0175-2002 (NACE Standards MR0103-2003 available)
Glycerin and H2O filled case
Blow out back plug standard
Under and overload stops
Wetted parts meet hardness requirements
ASME B40.100 compliant (EN837-1 compliant)
RoHS compliant
CRN registered
