Name: Winters PFD WinAIR Differential Pressure Gauge
Brand: Winters

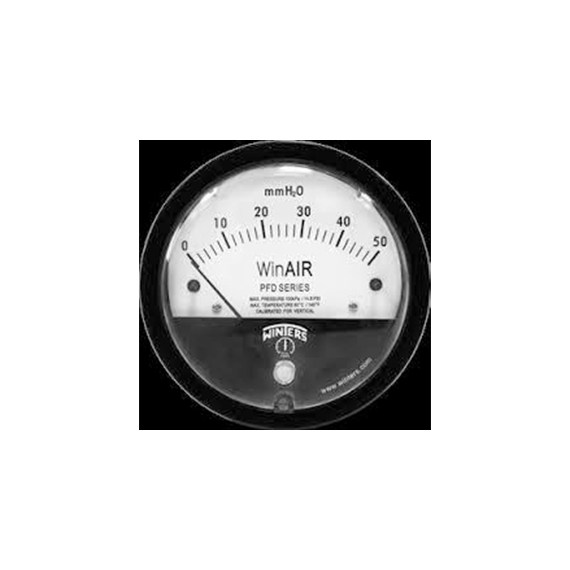

Winters PFD WinAIR Differential Pressure Gauge

Low pressure and differential monitoring for air and non-combustible gases including filters, blowers, vacuums, air handlers and clean rooms.

This is a resistance-free differential gauge for all air and non-corrosive gas installations. It has an extreme temperature tolerance with o-ring seal.

Winters PFD WinAIR Differential Pressure Gauge

Specs

Dial:

4″ (100mm), white aluminum with black markings

Case:

Die-cast black aluminum

Lens:

Polycarbonate

Ring:

Threaded die-cast black aluminum

Connection:

1/8″ NPTF high & low pressure taps, side & back

Features

Resistance-free differential gauge for all air and non-corrosive gas installations
Industrial grade die-cast aluminum case
Extreme temperature tolerance with o-ring seal
Easily accessible re-zero adjustment screw
2% full scale accuracy*
3 mounting adapters with screws included, other mounting accessories also available
5 year warranty
