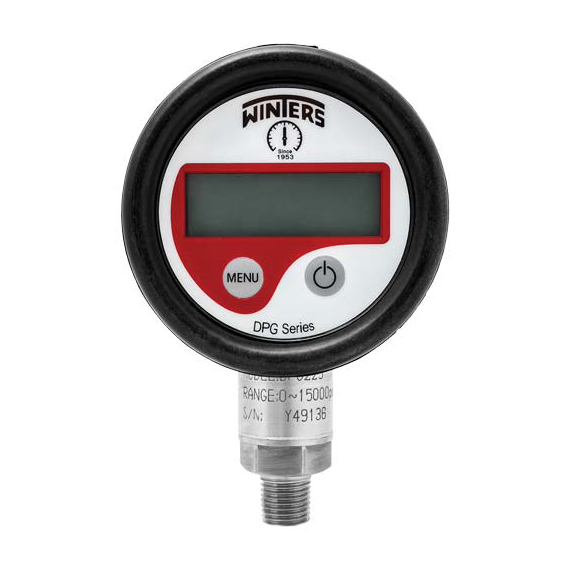

Winters DPG Digital Pressure Gauge
Ideal for commercial and industrial applications in both test measurement and general purpose installations.
Winters DPG Digital Pressure Gauge

Specs

Case Size:
2.5″ (63mm)
Case Material:
ABS
Rubber Boot:
Silicone rubber
LCD Display:
2″ x 3/4″ (48mm x 16mm)
Connection:
1/4″ NPT 304SS

Features

  • Simple 2 button operation
  • Reset to zero feature
  • Backlight turns on when on/off button is pressed
  • Option for display to remain continuously on
  • Continuous Peak pressure indication option
  • 316L welded diaphragm seal
  • Rubber boot is standard
  • ASME B40.100 compliant
  • RoHS compliant
  • ±1% accuracy (±0.5% optional for gauges up to 10,000 psi)
  • 5 year warranty
