The Rosemount 396A pH/ORP sensor features an anti-coating reference technology with a helical reference pathway that is robustly designed to minimize sensor maintenance and meet a number of difficult application requirements. This pH sensor is compatible with the Rosemont 1058 Transmitter and is ideal for use in dirty, abrasive, coating, and high solid applications.

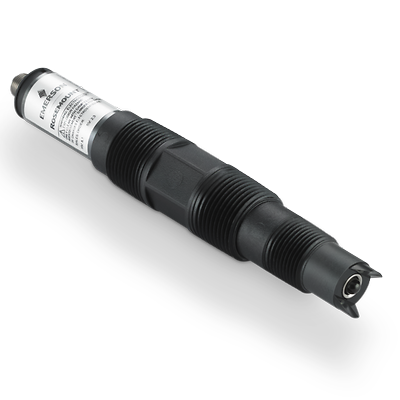

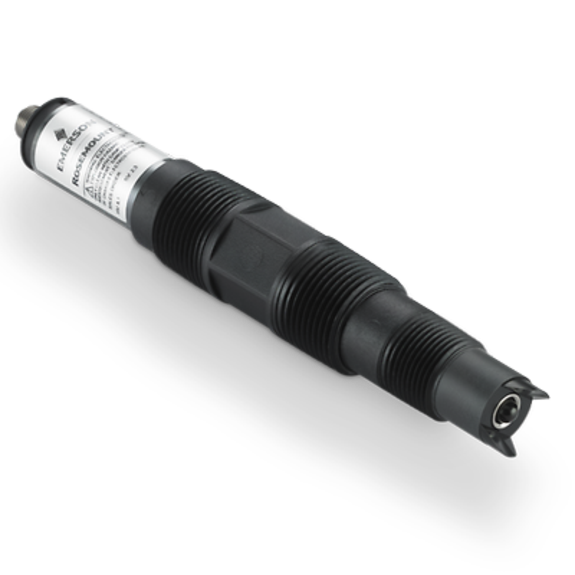

Rosemount 396A Anti-Coating pH Sensor

Specs

Operating Pressure
0 psig - 150 psig
Operating Temperature
32 °F - 212 °F (0 °C -100 °C)
Measurement Range
pH: 0 - 14
Materials of Construction
Wetted Materials: Titanium, Polypropylene, Glass, O-Ring (EPDM/FKM/FFKM), Platinum (ORP Only)
Process Connection
1" NPT

Features

  • Digital plug-and-play connection allows for easy and quick installation.
  • Features advanced diagnostics with predictive sensor health indicators with built-in troubleshooting tips.
  • Robust sensor design to maximize sensor life.
  • Anti-coating reference technology ensures a steady pH/ORP signal even when sensor is coated.
  • Features 3/4” and 1” NPT front and rear-facing process threads and is offered with a variety of sensor connection options to meet multiple installation needs.
