ExSite Enhanced Series camera systems are designed to meet demanding explosionproof requirements, providing high reliability, ease of installation, and best-in-class imaging and technology.


The ExSite Enhanced Series is designed for rugged environmental applications including oil and LNG facilities, refineries, on and offshore drilling rigs, and on-board marine applications. Featuring rugged 316L stainless steel construction that has been subjected to extensive vibration and environmental testing make it ideal for use in the most extreme conditions of temperature, moisture, ice, and dust.

The system can operate from –60° to 60°C (–76° to 140°F) while maintaining compliance to the T6 (<85°C) surface temperature specifications.

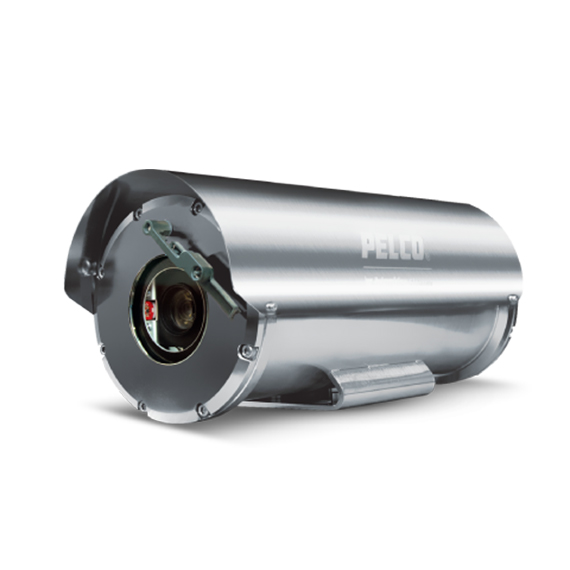

Pelco ExSite

Specs

Resolution
Up to 1920 x 1080p resolution wide dynamic range (WDR),
Lense
30x zoom lens, and superb low lightpPerformance
Compression
Dual Stream H.264 IP video with smart compression
Temperature Rating
Operate from -60° C to +60° C while in compliance to T6 surface temperature (<85° C) hazardous location regulations
Body
316L Billet Stainless Steel Electro Polished Construction
Installation
Upright or inverted Installation with automatic orientation detection
Orientation
Low latency electronics for improved pan/tilt driveability and safety
Connection
Standard IP ethernet connection and integrated transmission options including fiber, ethernet over voax, and UTP extension
Analytics
Built-in analytics including AutoTracker, adaptive motion detection, abandoned object, and More
Image Stabilization
Electronic image stabilization
Profiles
Onvif profiles S, G, and Q conformant
Ports
Dual cable entry ports to separate data and power cables
Installation
Efficient installation with a safety attach point, and simple wire termination methods

Features

  • Up to 1920 x 1080p Resolution
  • Wide Dynamic Range (WDR) Camera
  • Full Suite of built-in Analytics Including AutoTracker, Adaptive Motion Detection, and more.
  • Electronic Image Stabilization (EIS)
  • 16:9 Aspect Ratio; 1080p at 30 Images per Second (IPS)
  • 2.0 Megapixel (MPx), 30X Optical Zoom, 12X Digital Zoom
  • 360° Continuous Pan Rotation at 100° per Second
  • Tilt Range of +36° to –85° from Horizontal
  • Pan/Tilt and Enclosure with Integrated Optics Package (IOP) or Pressurized Integrated Optics Cartridge (IOC)
  • 16 Preset Tours, 256 Presets, 32 Window Blanks
  • Integrated Window Wiper (optional) with Configurable Delay and Shut-Off
  • ONVIF Profile S Conformant
