Our patented elastomer tube folds extend the life of your pinch valves for optimal durability and performance.

Pneumatic Pinch Valves

Play Video

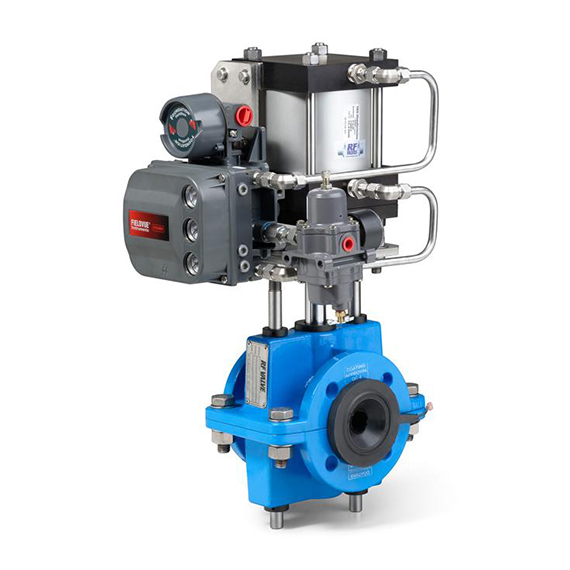

RF Pneumatic Pinch Valves

Specs

Size Range
1" (25mm) to 60" (1500mm)
Temperature
-50°F to 250°F
Max. Working Pressure
Up to 300psi (20bar) (consult for higher pressures)
Standard Face-to-Face
ASME B-16.10, DIN 3202, ISO 5732
Flange Drilling
ANSI 150#, ANSI 300#, DIN, JIS, AS
Actuation
Double or Single acting pneumatic, Fail Open or Close
Tube Material
NR, PGR, EPDM, NBR, IIR, CR, FPM, CSM (View Chart)
In-Line Tube Change
Yes
Wear Sensor
Yes, option
Body Type
Enclosed or Sealed
Body Material
Ductile iron (CRN available) or aluminum

Features

  • Robust and versatile actuators receptive of positioners of leading manufacturers
  • Exterior as well as interior corrosion resistant Fusion Bonded Epoxy Powdercoating
  • In-line and quick tube change with patented tube folds for durability & self-cleaning
  • Standard Face-to-Face
