Our patented pinch valve design uses elastomer tube folds to prevent stretching and extend the life of your valve.

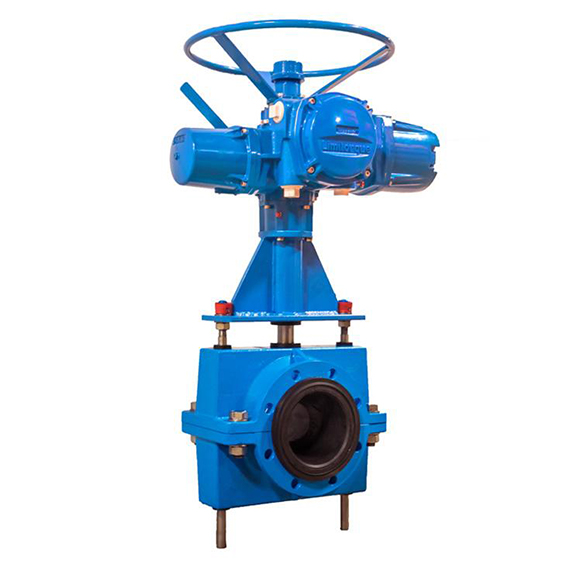

Electric Pinch Valves

Play Video
Electric Pinch Valves

Specs

Size Range
1" (25mm) to 60" (1500mm)
Temperature
-50°F to 250°F
Max. Working Pressure
Up to 300psi (20bar) (consult for higher pressures)
Standard Face-to-Face
ASME B-16.10, DIN 3202, ISO 5732
Flange Drilling
ANSI 150#, ANSI 300#, DIN, JIS, AS
Actuation
Electric Actuator with or without manual hand wheel override (120V, 240V, 360V, or 480V)
Elastomer Qualities
NR, PGR, EPDM, NBR, IIR, CR, FPM, CSM (View Chart)
In-Line Tube Change
Yes
Wear Sensor
Yes, option
Body Type
Enclosed or Sealed
Body Material
Ductile iron (CRN available) or aluminum

Features

  • Configurable with most electric multi-turn actuators on the market
  • Exterior as well as interior corrosion resistant Fusion Bonded Epoxy Powdercoating
  • In-line and quick tube change with patented tube folds for durability & self-cleaning
  • Standard Face-to-Face
