Richter check valves serve as crucial safeguards against the back-flow of liquids, gases, and vapors within pipelines.

Specifically engineered for media that demands corrosion resistance beyond what stainless steel provides, they offer a cost-effective alternative to valves made of exotic and expensive metals like Hastelloy®, Monel®, and tantalum. Ideal for handling pure and slightly solids-laden media, as well as metal-reactive substances such as H2O2, Richter check valves are tailored for applications where effective cleaning and anti-adhesive surfaces are paramount.

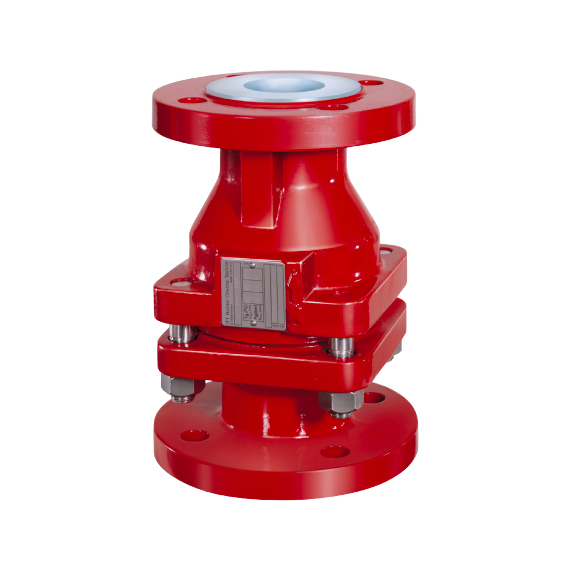

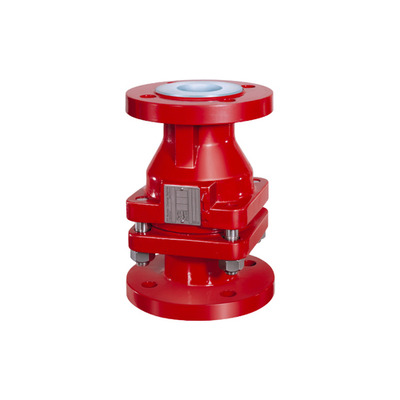

Richter BC/CV – Ball Check Valve

Specs

Design
ASME/ISO
Nominal Pressure
Class 150/16 bar
Lining
PFA
Housing Material
EN-JS 1049 / ASTM A395
Face-to-Face
Peabody-Dore/DIN EN 558-1 and ISO 5752 series 1
Flanges
ISO 7005-2, type B or flanges drilled to ASME B16.5 class 150, raised face
Temperature Range
-60 °C to +180 °C (-75 °F to +360 °F)
Certifications
EU Pressure Equipment Directive 2014/68/EU, German Clean Air Act (TA-Luft)

Features

  • Maximum reliability: body PFA lining 4 - 5 mm
  • ASME/ISO design, with solid ball,can be installed vertically and horizontally
  • Can also be used for vapours and gases
  • Wide variety of check valves available
