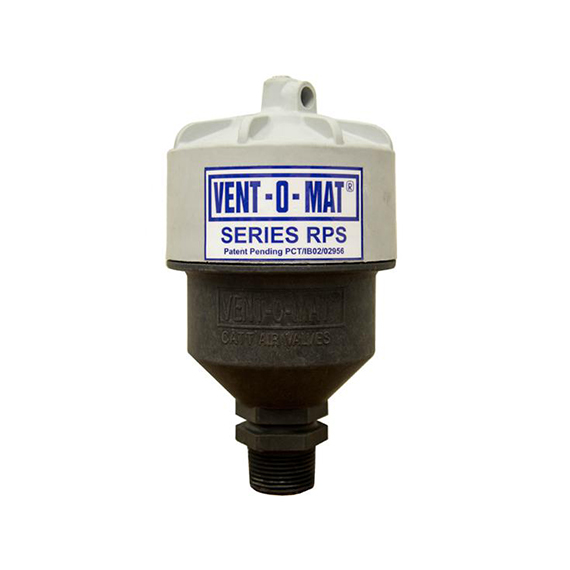

Vent-O-Mat series RPS Air Release Air Valve

The Vent-O-Mat® RPS Series valve is specially developed as a Lightweight Air Release Valve for the irrigation market.
RPS Air Release Air Valve

Specs

Size Range
0.5" (15mm) to 2" (50mm)
Temperature
-40°F to 185°F
Max. Operating Pressure
Up to 232psi (16bar)
Min. Operating Pressure
7.25psi
Flange/End Connection
FNPT, MNPT
Body Material
Polypropylene Reinforced (RPS) or Fusion Bonded Epoxy Powdercoated Ductile Iron (RC)
Float Material
High Density Polyethylene (solid)
O-Rings & Nozzle Seat
EPDM

Features

  • Simple efficient action
  • Reduces water hammer
  • Unique self-cleaning operation
  • UV stabilized
  • Robust lightweight and compact
  • Replaces any existing valves
