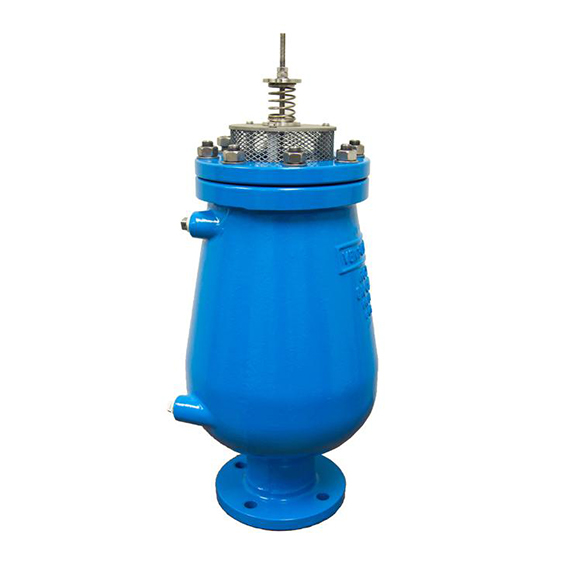

RGXII Air Release Air Valves
The original “Anti-Shock” & “Anti-Surge” air release and vacuum break valves for water, sewage, and effluent pipelines.
RGXII Air Release Air Valves
Specs
Size Range
2" (50mm) to 8" (200mm)
Temperature
-40°F to 185°F
Max. Operating Pressure
Up to 145psi (10bar)
Min. Operating Pressure
2.9psi
Flange/End Connection
MNPT, Flanged ASME B-16.5
Flange Drilling
ANSI 150#
Body Material
Fusion Bonded Epoxy powder coated Ductile Iron or Stainless Steel 304L or 316L
Top Cover
Stainless Steel 304L
Float Material
High Density Polyethylene (solid)
O-Rings & Nozzle Seat
EPDM
Features
- High capacity air discharge during pipeline filling
- High volume air intake for vacuum break purposes, both during draining of water pipelines and/or column separations
- Independent third-party tested
- Controlled pressurized air discharge releases air when pipelines are fully-charged
- Surge relief prevents pipeline bursts during pump trip & rapid pipeline filling
- More compact & shorter to accommodate existing installations and retrofits
- Designed for low head sealing as well where line pressures are generally lower than normal
