The MV1000 is a Medium Voltage (MV) AC drive that takes a generational leap in ease of application and installation.

With Yaskawa's Smart Harmonics™ Technology input isolation transformer and 9 level output for 4kV drives (17 level line-to-line), the biggest traditional issues with the application of MV drives all but disappear.

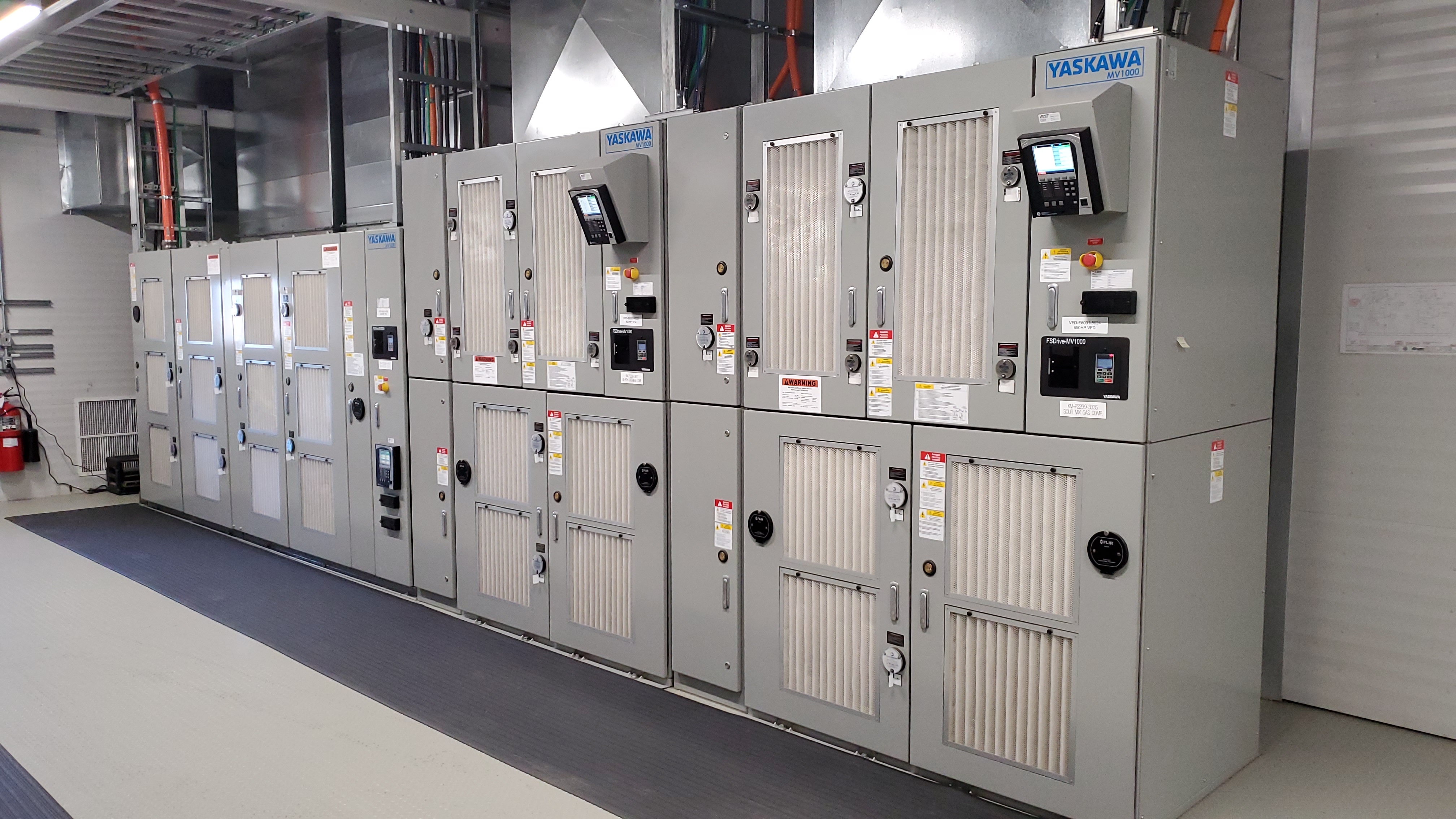

The MV1000 is a compact, all-in-one package including (optional) input switchgear, ideal for new or retrofit installations.

MV1000 Medium Voltage Drive Overview

Play Video
Yaskawa MV1000 Drive

Specs

Control Methods
V/f Control (V/f), Open Loop Vector Control (OLV), Closed Loop Vector Control (CLV)
Frequency Control Range
0.01 to 120 Hz
Frequency Accuracy (Temperature Fluctuation)
Digital input: within ±0.01% of the max output frequency (-10°C to +40°C); Analog input: within ±0.5% of the max output frequency (-10°C ± 40°C)
Frequency Setting Resolution
Digital inputs: 0.01 Hz; Analog inputs: 1/2048 of the maximum output frequency setting (11 bit plus sign)
Output Frequency Resolution
0.001 Hz
Frequency Setting Methods
−10 to +10 V, 0 to +10 V, 4 to 20 mA
Starting Torque
V/f: 130% at 3 Hz, OLV: 130% at 0.3 Hz, CLV: 130% at 0 r/min
Speed Control Range
V/f: 1:20, OLV: 1:100, CLV: 1:1000
Speed Control Accuracy
V/f: ± 2 to 3%, OLV: ± 0.5%, (25 °C ± 10 °C), CLV: ± 0.02% (25 °C ±10 °C)
Speed Response
OLV: 10 Hz, CLV: 50 Hz
Accel/Decel Time
0.0 to 6000.0 s (4 selectable combinations of independent acceleration and deceleration settings)
Motor Protection
Electronic thermal overload relay
Momentary Overcurrent Protection
Drive stops when output current exceeds 132%
Overvoltage Protection
Power Cell VPN > 1035 VDC
Undervoltage Protection
Power Cell VPN < 300 VDC
Momentary Power Loss Ride-Thru
Resumes operation if power loss is less than 2 s (standard) (UPS Required)
Overheat Protection
Power Cell = Thermistor, Transformer = PT100 and Thermal Switch
Ground Fault Protection
Electronic circuit protection
Ambient Temperature
-5 to +40°C (up to +50°C with output current derate)
Humidity
95% RH or less (no condensation)
Storage Temperature
-20 to +60 ˚C (short-term temperature during transportation)
Altitude
Up to 2000 m without derating, up to 4000 m with output current and voltage derating

Features

  • Compact design which produces a very competitive footprint across the entire power range in a NEMA Type 1 enclosure (filtered and gasketed)
  • Using the Yaskawa Smart Harmonics™ Technology ensuring very low THD, without the need for additional filters
  • Unique output stage using an enhanced Cascaded H-Bridge configuration reduces the number of power cells by half, providing a very clean output waveform to the motor, without the need for additional filters or reactors
  • Advanced control features providing high performance including Open Loop Vector Control and excellent Energy Saving capabilities
  • Digital Operator with an easy-to-view LCD display (same as used on the A1000 series LV drives)
  • Communication options for all major industrial networks provides high speed control and monitoring, reducing installation cost
  • DriveWizard™ plus MV computer software and Application Sets for easy configuration
  • USB Copy Unit and Keypad configuration storage provide speed and convenience for duplicate configuration of multiple drives
  • High quality design, with an expected field MTBF greater than 200,000 Hours (22.8 years).
