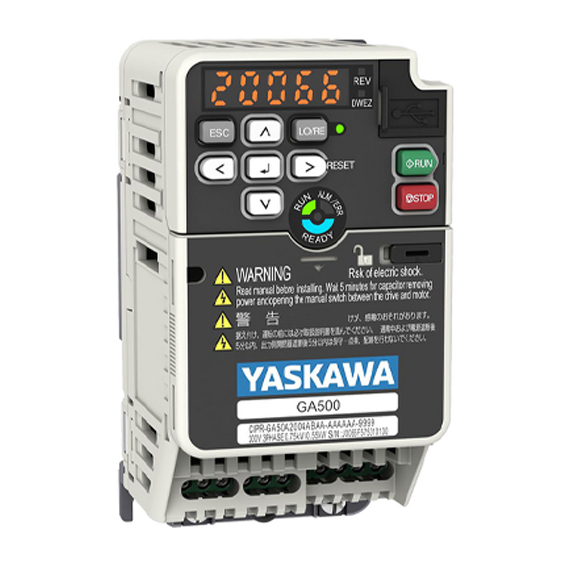

Power Range
1-phase 200~240 V: 0.1 to 4 kW (HD) / 2.2 kW (ND); 3-phase 200~240 V: 0.1 to 22 kW (ND); 3-phase 380~400 V: 0.1 to 30 kW (ND)
Rated Input Frequency
50 Hz
Allowable Voltage Fluctuation
-15 to +10%
Allowable Frequency Fluctuation
±5%
DC Supply
200 V class: 270 to 340 Vdc; 400 V class: 513 to 679 Vdc
Overload Tolerance
HD: 150% of rated output current for 60 s; ND: 110% of rated output current for 60 s (allowable every 9 mins after overload 1 min)
Braking Transistor
Built in
Applicable Motor Types
Induction/PM/Synchronous Reluctance
Maximum Output Frequency
Induction Motor: 590 Hz; PM Motor – Vector Control: 590 Hz; PM Motor – Advanced Vector Control: 270 Hz; IM/PM/SynRM – EZ Vector Control: 120 Hz
Output Frequency Resolution
0.001 Hz
Starting Torque
V/f control (IM): 150% @ 3 Hz; Vector Control (IM): 150% @ 0.6 Hz; Vector Control (PM): 100% @ 10% speed
Speed Control Range
V/f control (IM): 1:40; Vector Control (IM): 1:100; Vector Control (PM): 1:10; Advanced Vector Control (PM): 1:100; EZ Vector (IM/PM/SynRM): 1:10
Zero Speed Control
Possible with Advanced Vector Control for PM, sensorless, IPM motor
Torque Limit Control
Possible in Vector Control (IM/PM) and Advanced Vector Control (PM), sensorless, 4 quadrants individually adjustable; Acceleration/Deceleration Ramps 4 individual, 0 to 6000 s linear, 4 separately adjustable S-curves
Braking Torque
Approx. 20% without braking resistor, approx. 125% with braking resistor
V/f Pattern
Freely adjustable
Protection
Motor electronic thermistor function; Motor PTC input; Instantaneous over current at 200% of rated current; Drive over load 150% (HD) / 110% (ND) for 1 min, once per 10 min; DC over voltage at 420 Vdc (230 V units) / 820 Vdc (400 V units); Output ground fault; Motor stall prevention
Software Functions
Power outage ride through control; PID control; Speed search (catch coasting motor); Over-/undertorque detection; 17-step multi-speed operation; Resonance frequency avoidance; Motor data auto-tuning rotating/in stop condition; Dwell function; Cooling fan control by heatsink temperature; Reference limiter; DC brake; Overexcitation braking / High-slip braking; Energy saving; Parameter copy function; DC over voltage suppression
Ambient Conditions
Place of Installation: Indoors, no direct sunlight; free from oil, mist, flammable gases, metal powder, oil, water, salt, harmful gases and liquids, solvents;
Vibration Resistance
10 to 20 Hz – 1 g (9.81 m/s²); 20 to 55 Hz – 0.6 g (5.9 m/s²)
Standards
UL61800-5-1; EN61800-2; IEC/EN61800-5-1; ISO/EN13849-1 Cat. III PLe, IEC/EN61508 SIL3 (2 Safety inputs, 1 EDM
Enclosure
IP20; UL type 1
Communication
Modbus/Memobus embedded via built in RS485 interface, 115.2 kBps
Programming Interface
Built in removable LED keypad with soft buttons; Built in USB mini port for connection a PC or Android Smart Device; Serial through keypad port (needs adapter)
Programming Tools
DriveWizard 10 (Windows 10); DriveWizard mobile (Android and iOS)
PLC logic / Application Programming
Programmable in DriveWorksEZ, up to 100 connections (DWEZ Pro) or 25
