Specs

240 V Power Range

10-100 HP (ND), 7.5-75 HP (HD)

480 V Power Range

7.5-800 HP (ND), 5-750 HP (HD)

Ambient Operating Temperature

-10C to 50C (Open Type IP00)

Certification

UL, cUL, CSA, CE, RoHS, RCM, TUV* (*Functional Safety)

Standard I/O

(8) Digital Outputs, (3) Analog Inputs, (1) Pulse Train Input, (2) Safe Torque Off Rated Inputs, (4) Relay Outputs, (2) Analog Outputs, (1) Pulse Train Output, (1) Safe Torque Off Rated Output

Communications Options

Modbus RTU (Standard), EtherNet/IP, Modbus TCP/IP, DeviceNet, Profibus DP, Profinet

Mechanical Options

NEMA 1 Kit, External Heatsink

Native Regen Capable

Yes

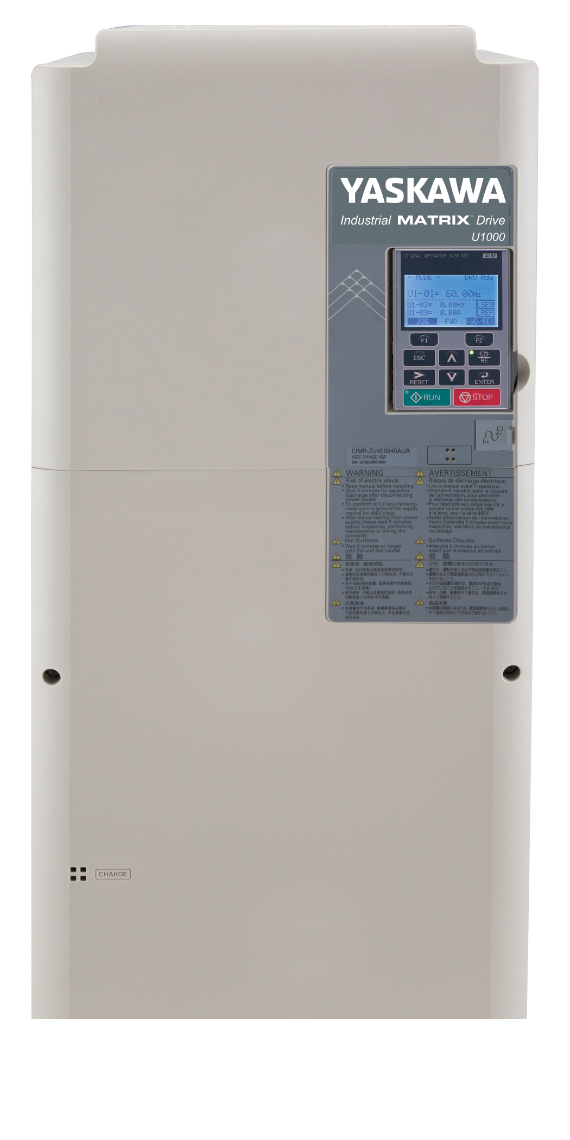

Yaskawa U1000 Industrial MATRIX Drive

Increase your green space with Yaskawa’s U1000 Industrial Matrix Drive, the product that goes beyond conventional drives, providing outstanding harmonic performance and regeneration in a single stand-alone compact drive solution.

The unique advantage with the U1000 Matrix Drive from conventional industrial drives: there is no DC voltage (DC bus) component at all. This is the only direct AC to AC drive.

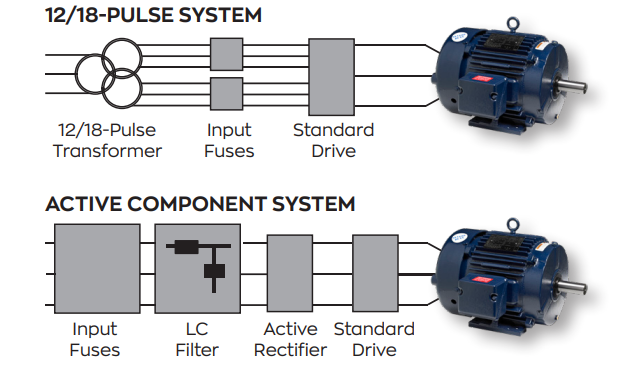

Convectional Low Harmonic Solutions

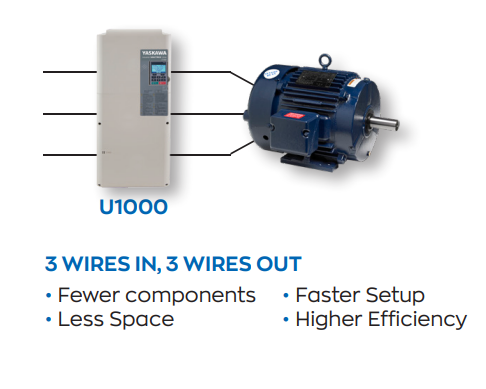

U1000 Industrial MATRIX Solution

The U1000 is a compact, total all-in-one solution for ultra-low harmonics and/or full regeneration and is the ultimate choice for power quality and energy savings.

The U1000 delivers high flexibility and motor control performance to meet a wide variety of application requirements.

U1000 MATRIX Drive - Applications
