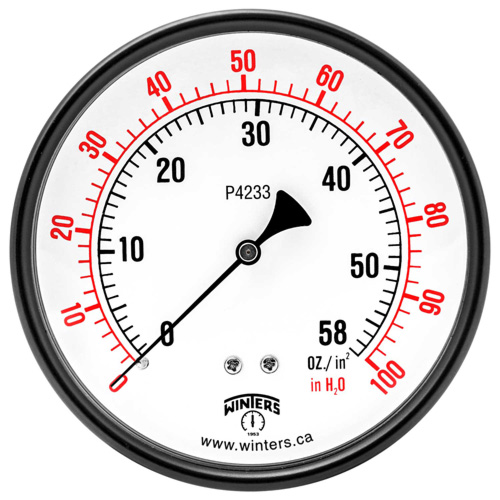

Winters PLP Low Pressure Gauge
  • Suitable for measuring gaseous media both corrosive and non-corrosive
  • Used to measure natural gas pressure as well air flow indication and leak detection
  • Vacuum pumps, air compressors, air filters, gas burners, vacuum ovens, suction regulators and respirators
  • Winters PLP Low Pressure Gauge

    Specs

    Dial:
    2.5” (63mm), 4” (100mm), 4.5” (115mm) and 6” (150mm), white aluminum with black and red markings
    Case:
    2.5” (63mm), 4” (100mm): AISI 304 SS, 4.5” (115mm), 6” (150mm): Aluminum, painted black
    Lens :
    2.5” (63mm): Polycarbonate 4” (100mm): Styrene-acrylonitrile resin 4.5” (115mm), 6” (150mm): Glass
    Ring :
    2.5” (63mm), 4” (100mm): No ring 4.5” (115mm), 6” (150mm): Aluminum

    Features

    • Highly accurate reading of low pressures
    • Brass or stainless steel wetted parts
    • Ranges from 15” H2O/oz to +10 psi
    • Overpressure protection on some models (OP)
    • ASME B40.100 compliant
    • CRN registered
    • 5 year warranty
