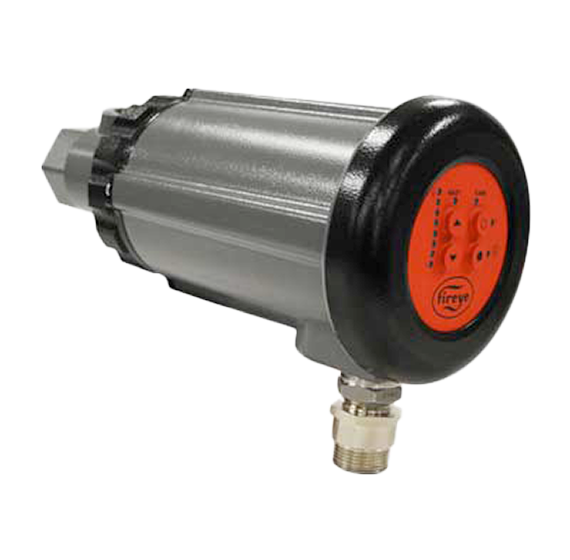

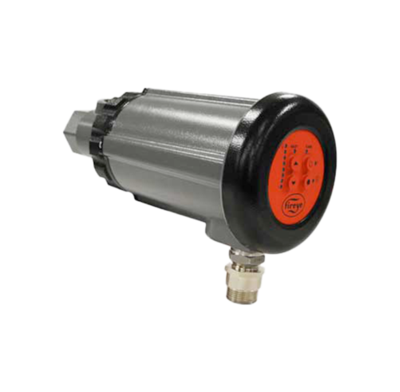

The Fireye Phoenix Series 2 type 85UVF/IRF flame scanners are microprocessor-based devices utilizing a solid-state flame detection sensor.
The Phoenix flame scanners incorporate an internal flame relay with automatically set ON/OFF thresholds, thereby eliminating the need for a remote flame amplifier or flame switch.
Phoenix scanners detect the amplitude of the modulations (the flame “flicker”) that occur within the targeted flame, over a wide frequency.
During the scanner setup procedure, the amplitudes of the target flame are automatically stored by the flame scanner, together with optimum ON/OFF criteria. The appropriate sensor gain is automatically selected. Phoenix scanners incorporate full self-diagnostics and electronic self-checking.
Typical Applications
- Duct Burners
- Industrial Gas Burners
- Refinery Applications
- Low NOx Burners
- Waste Gas Units
- Incinerators
