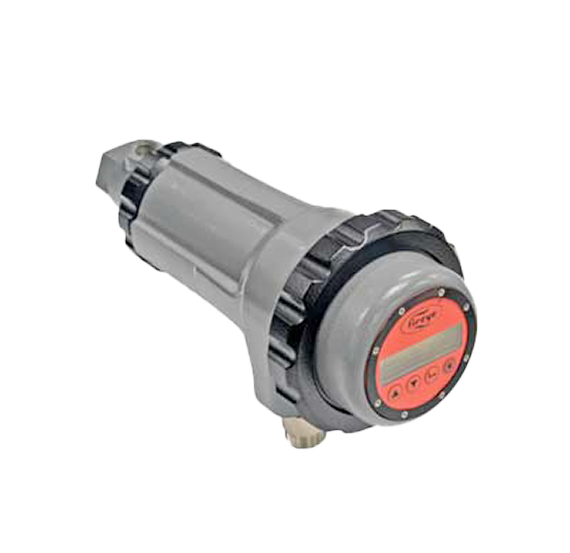

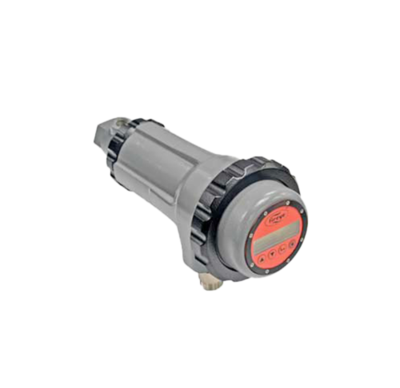

The Fireye InSight II Type 95DSS3 flame scanners are microprocessor-based flame scanners utilizing sold-state infrared (IR) and ultraviolet (UV) sensors.

The Fireye InSight II flame scanners incorporate two internal flame relays with adjustable ON/OFF thresholds and two 4-20 mA analog outputs, thereby eliminating the need for a remote flame amplifier.

The Fireye InSight II scanners are powered by 24 VDC and have electronic self-checking. Model 95DSS3-1 has one 8-pin and one 12-pin electrical cable quick disconnect. Models 95DSS3-1CEX and -1WICEX have internal terminal blocks for cable connection. The scanners have either an attached Keypad & VFD display or an infrared transmitter for a remote handheld keypad/display.




  • Solid state dual UV and IR sensors
  • Two flame relays
  • Fault relay
  • Two 4-20mA outputs
  • Four memory files
  • Auto configuration
  • SIL 3 certified
