The Fireye M4RT1/M4RT24 Flame Safeguard Control is a compact burner management system.

Designed to provide automatic ignition and continuous flame monitoring, the M4RT1/M4RT24 is meant for commercial-sized heating and process burners that use gaseous fuels.

The M4RT1/M4RT24 control incorporates a safety checking circuit that is operative on each start. If flame (real or simulated) is detected prior to a start or during the purge, the fuel valves will not be energized, and the unit will lockout.

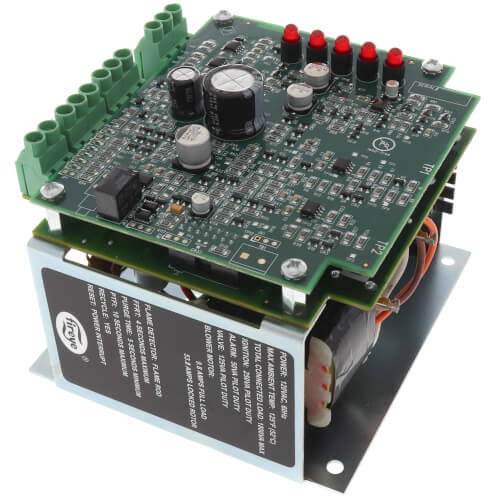

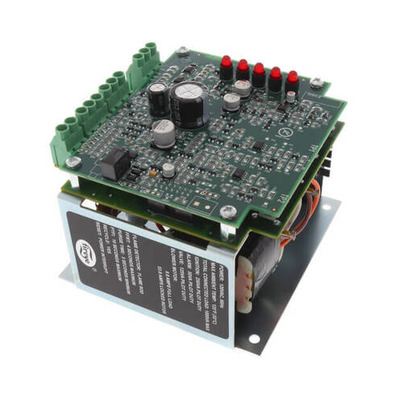

M4RT1 Flame Safeguard Control

Specs

Supply
120V (min. 102, max. 132) 60 Hz
Power Consumption
12VA (operating)
Shipping Weight (Approx.)
2.2 lbs. (1.4 kg)
Ambient Temperature Limits
-40 to 125 degrees Fahrenheit (-40 to 52 degrees Celsius)
Minimum Load Requirement
100mA
