The YZ300 Module shall interface with the Fireye YB110 or ZB110 BurnerLogix and expand on the YB110 or ZB110 annunciation capabilities.

All interlock messages can be programmed using the YZ300P. The Interlock Annunciator Module connects to any YB110 or ZB110 BurnerLogix chassis/amplifier by means of a cable. (P/N ED580-4, ED580-8). A separate wiring base is required.

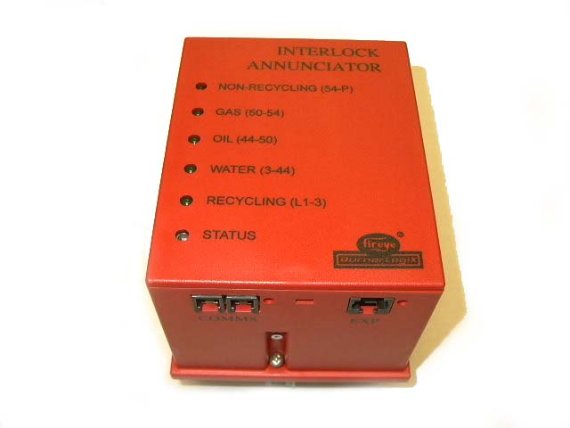

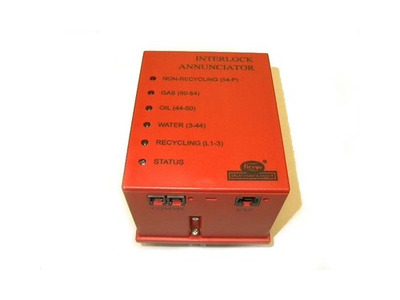

BurnerLogix YZ300 Annunciator


Supply Voltage
YZ300 - 120VAC (+10% - 15%), 50/60 Hz; YZ320 - 230VAC (+10% - 15%), 50/60 Hz
Power Consumption
10 VA
Protection Category
NEMA1 (IP01)
Ambient Temperature Levels
-40 to 140 degrees Fahrenheit (-40 to 60 degrees Celsius)
Response Time
66 milliseconds Purge/ 32 milliseconds Run
