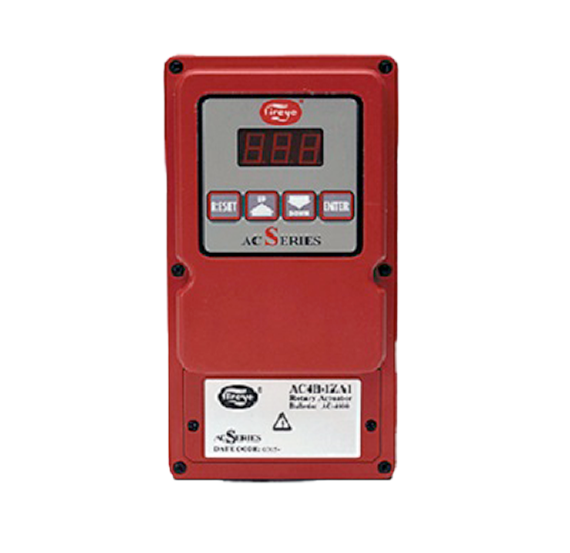

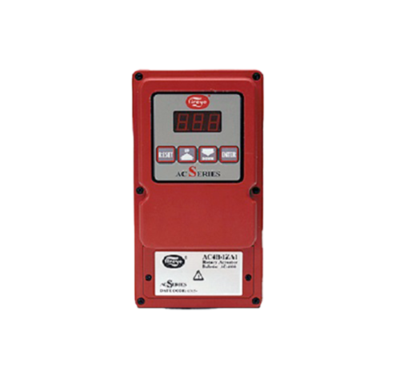

Rotary actuators motor for use in burner and valve control systems

The Fireye rotary actuator is a keypad programmable, direct coupled, modulating motor for use in burner and valve control systems. It is typically used with an electronic control to regulate a process temperature. The drive shaft of the actuator connects to a butterfly valve stem, which rotates 90 degrees from minimum to maximum position.

Features

  • Solid state electronics
  • 4 Position keypad orientation
  • LED display with membrane keys
  • 4-20mA, 0-10Vdc and switch inputs for positioning
  • 2 Auxiliary contacts for position feedback
  • Selectable clockwise or counterclockwise rotation
  • 2.3 Nm (20 lb-in) torque
  • 120VAC or 230VAC power
  • NEMA 4 construction
