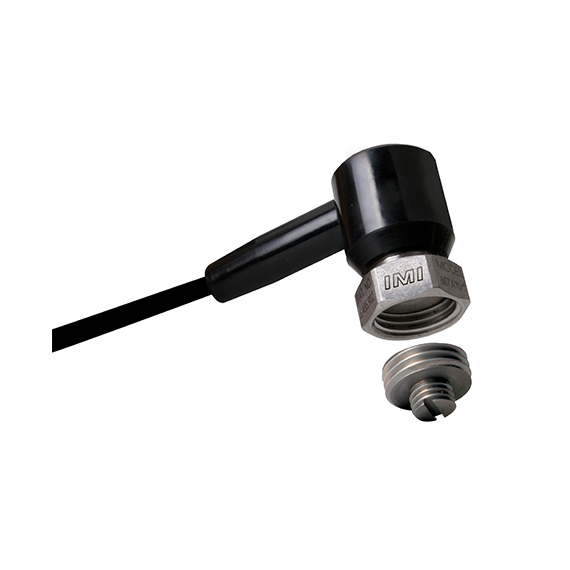

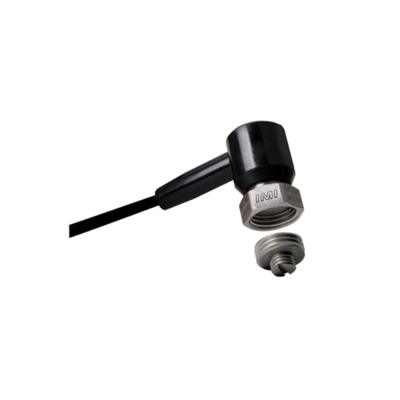

IMI 607A11 Swivelling Accelerometer
Installing vibration sensors into tight spots is quick and easy with Model 607A11 Swiveler® ICP® Industrial Accelerometer.
The unique design facilitates positioning of the integral, side-exit cable while the floating lock nut secures the sensor into place. A low-cost, smaller-sized alternative to ring-style accelerometers, Swiveler® has definite advantages over other industrial grade vibration sensors.

Offering a small footprint (only 9/16 inch) and 360° cable rotation, the Swiveler® is excellent for permanent installations in space-restricted locations. The unit’s laser-welded, hermetically-sealed design and stainless steel construction permits its use in dirty, oily, industrial, and submerged applications. With a sensitivity of 100 mV/g and frequency range to 600k cpm (10k Hz), Model 607A11 is ideal for route-based or on-line monitoring of rotating machinery

Features

  • Unique 360ยบ swivel mount that allows
  • for easy cable orientation
  • Small footprint and low-profile design
  • permits mounting in tight spaces
  • Waterproof housing, ideal for submersible applications
  • Independent 1/4-28 mounting stud for
  • simple installation
  • Intrinsically-safe options available
