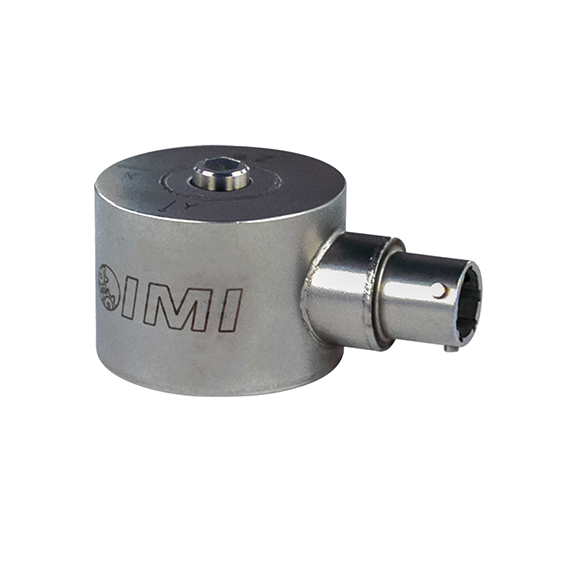

IMI 604B31 Triaxial Accelerometer
Platinum Stock Products;Triaxial ring-style, industrial, ceramic shear ICP® accel, 100 mV/g, 0.
5 to 5k Hz, side exit, 4-pin conn., triaxial single point ISO 17025 accredited calibration.

IMonitoring vibration on induction motors is at the core of any predictive maintenance program. Typical applications demand vibration measurements in the horizontal, vertical and axial direction on both the inboard and outboard motor bearings. Aside from typical mechanical issues, such as misaligned couplings and unbalance, the vibration analyst can also detect electrical issues that cause mechanical vibrations. Some common electrical faults include air gap variation, broken rotor bars and bearing fluting.

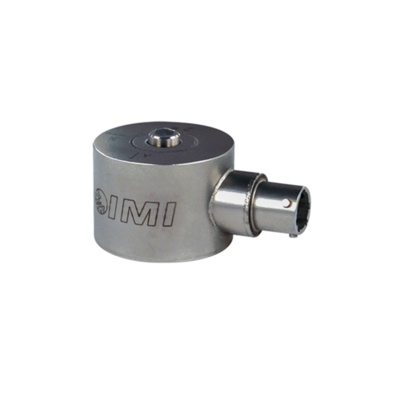

IMI 604B31 Triaxial Accelerometer

Specs

Sensitivity:
(±20%) 100 mV/g(10.2 mV/(m/s²))
Frequency Range:
(±3dB) 30 to 300000 cpm(0.5 to 5000 Hz)
Sensing Element:
Ceramic
Measurement Range:
±50 g(±490 m/s²)
Weight:
4.4 oz(124 gm)
