VCI Gas Shut Off Valve

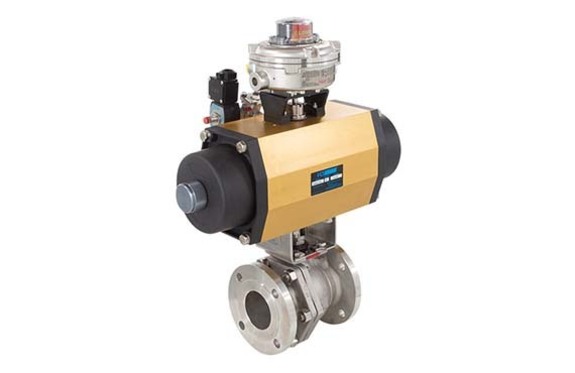

VCI developed a unique “Live Loaded” seating ball valve design to guarantee shutoff integrity at low temperatures (-40ºF), and low to variable pressures for natural gas applications.

VCI developed a unique “Live Loaded” seating ball valve design to guarantee shutoff integrity at low temperatures (-40ºF), and low to variable pressures for natural gas applications.

CSA/FM Automatic Safety Shut-Off Valves (Emergency Safety Shut-Off Valves) feature a springing action that will close the valve automatically when a system failure is detected. When there is a failure, the valve is de-energized. The valve remains closed until the fault is cleared from the system. The CSA/FM is agency and factory certified.

CSA/FM Automatic Safety Shut-Off Valves (Emergency Safety Shut-Off Valves) feature a springing action that will close the valve automatically when a system failure is detected. When there is a failure, the valve is de-energized. The valve remains closed until the fault is cleared from the system. The CSA/FM is agency and factory certified.

Features & Specs

  • One Piece End Entry, Two & Three Piece Side Entry
  • Fire Safe Certified
  • Floating Ball
  • Antistatic Device
  • Locking Device
  • Blowout Proof Stem
  • Live Loaded Seats
  • Bi Directional and Uni Directional
  • NACE
  • To -50 °C / -58 °F Fully CSA Certified Actuated Units
  • To -60 °C / -76 °F Fully CSA Certified Manual Valves
Basic Design ASME B16.34
Sizes 1/2" to 8" Full Bore & Regular Bore
Pressures ANSI Class 150-300
Materials Ductile Iron, WCB, LCB, CF8M & Alloy 20
Ends RF, NPT, SW, BW
Fire Safe Certified API 607 4th Edition
