Pressure Relief Valve Monitoring

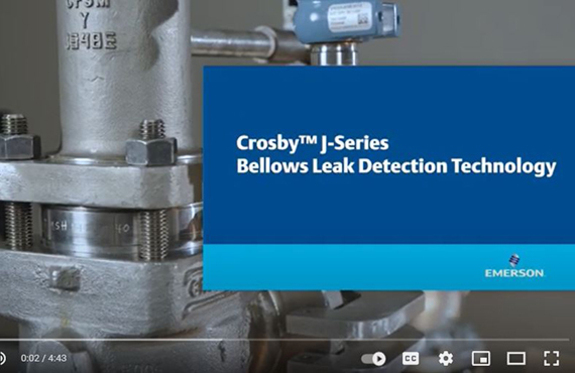

Introducing Crosby Bellows Leak Detection, enabling remote detection of bellows ruptures in PRVs, with the capability to reduce and accurately calculate volumetric emissions in real-time.

The most common causes of bellows failures are excessive backpressure and rapid cycling. Ruptured bellows will cause fugitive emissions and may prevent valve operation at the designed set pressure, with the risk of overpressure events.

Bellows Leak Detection, addresses the problem of bellows failures, which are challenging to detect and often remain unnoticed for years until removal of the valve for periodic service. Leak detection and repair (LDAR) programs may include PRVs, but their target sources for leakage detection are flanges or valve seats, so bellows ruptures will generate fugitive emissions through the PRV bonnet vent that may not be in the LDAR scope. In addition, PRV installations are often difficult to access and in hazardous locations, making leak detection difficult.

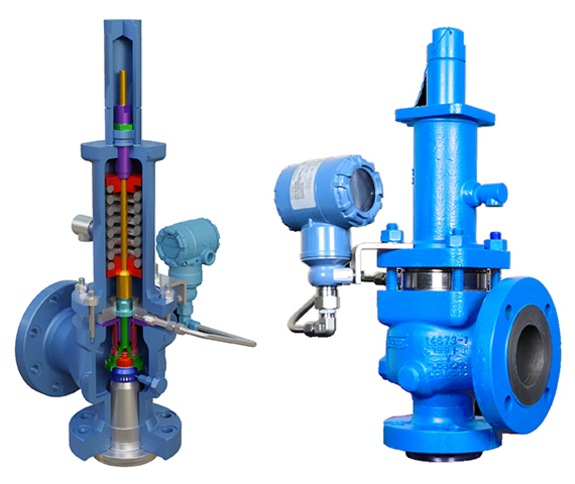

The Bellows Leak Detection solution is a safer and more efficient method for detecting bellows failures and emissions. It consists of a backup piston and a Rosemount™ wireless or wired pressure transmitter. The backup piston can reduce emissions by over 90% in the event of a bellows rupture because it has a much smaller clearance than a standard bonnet vent, and it ensures balanced operation. The pressure transmitter provides instant timestamped notification of bellows failure and emissions volume data in real-time.

Upgrade kits for existing Crosby J-Series PRVs are available for both new technologies, and new PRVs can be purchased with these features pre-installed.

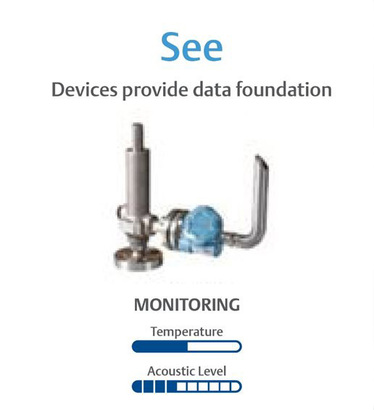

PRVs are mechanical devices and are typically not monitored. Preventive maintenance with service schedules is the norm. Consequently, undetected relief events and leakages may remain unnoticed for years.

Better understanding of relief events will enable more profitable operations with improved safety and reliability.

EVENT LOG - REGULATORY REPORTING

• Summary of releases and events
• Ability to insert inspection ID, date, and explanation

PRE-BUILT

• Easily deployed via a virtual machine
• Integrate with existing wireless infrastructure

SCALABLE

• Steam traps, safety showers, pumps, heat exchangers and more
• Integration with OSIsoft PI System^TM
• Deploy in small, large or enterprise-wide operations

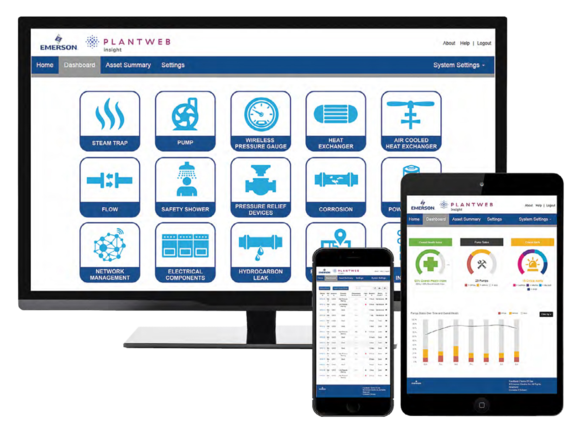

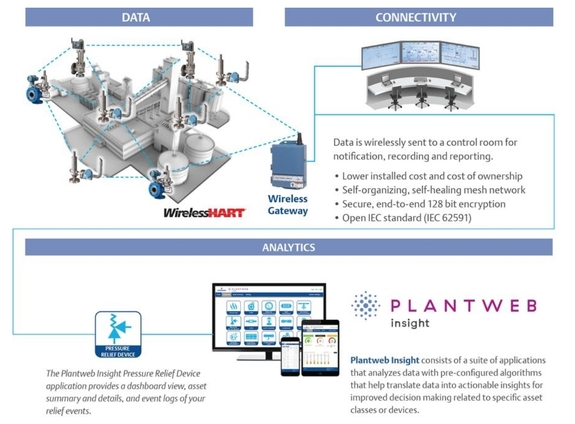

Data is collected using WirelessHart technology, and sent to the control room for notification, recording and reporting. The Plantweb Insight Pressure Relief Device application provides a dashboard view, asset summary and details, and event logs of your relief events.
