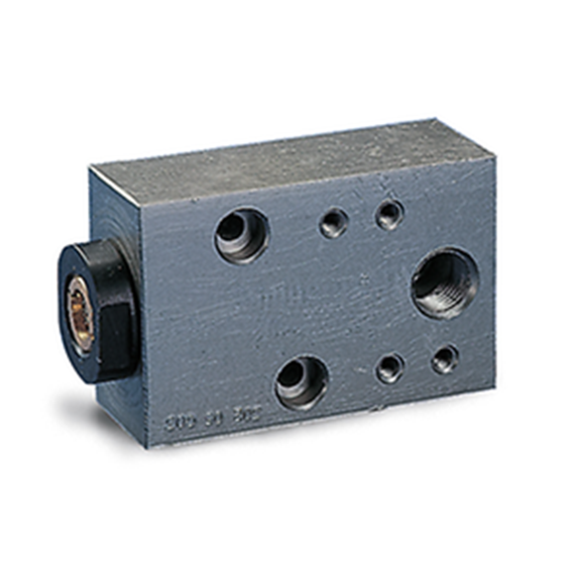

The EL-O-Matic breather block provides corrosion protection of the actuator spring chamber. It should be used on applications where the actuator is located in a corrosive atmosphere which would otherwise be sucked into the actuator through the “B“ port during the spring stroke. The breather block has an built-in quick exhaust function to improve the spring stroke time (see table in data sheet). An optional speed control can be provided to regulate this closing time.
EL-O-Matic Breather Block
EL-O-Matic Breather Block
Specs
Power Source
Pneumatic
Product Type
Accessories
Actuation
Quarter-turn
Certifications
This product is only intended for use in large-scale fixed installations excluded from the scope of Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS 2).
Control Type
On/Off
Valve Type
Ball, butterfly, plug and any other quarter turn application
Operating Temperature
-20°C to +80°C (-4°F to +176°F)
Operating Pressure
up to 8.3 bar / 120 psi
Resources
-
Data Sheets & Bulletins
-
Data Sheets & Bulletins
Features
- The breather block provides corrosion protection of the actuator spring chambers.
- Durable hard anodize aluminium design.
- Suitable for indoor and outdoor use.
- Easy installation on actuators with a VDI/VDE 3845 (NAMUR) solenoid interface.
- Suitable for piped or direct mounted solenoid valves.
- Optional available with speed control throttle.
- Comes with a built-in quick exhaust function.
