Automatic Bypass Odorizer for Natural Gas Distribution and Farm Tap Units
Industrial Odorization Technologies & Applications

Automatic Bypass Odorizer for Natural Gas Distribution and Farm Tap Units

Rural gas distribution units are known to be manually operated, causing inaccurate dosing of odorant, and costly site visits to maintain low dollar value systems.
The Spartan Controls Automatic Bypass Odorizer simplifies this need with a unit that offers automated controls for varying flow rates, simplified operation, low power consumption, accurate dosing and low maintenance.

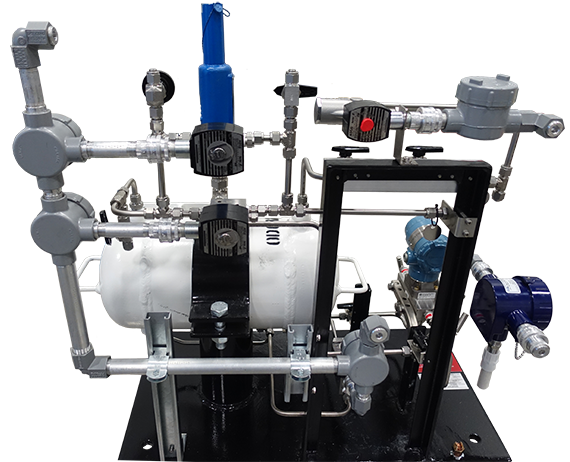

Auto Bypass Odorizer (OdrPRO™ - ABO)

Specs

Applications
RMO stations with flow rates to 2000 m3/h and for FTUs
Temperature Range
-20C to 54C (-40C low temp option available)
Pressure Range
150 PSIG (higher pressure options available)
Area Classification Section
Class 1 Div 1 Skid and Class 1 Div 2 Control Panel

Features

  • Bypass stream picks up odorant vapor in tank and discharges it into the downstream pipeline
  • No liquid odorant in any lines (stays in tank)
  • Passive bypass in the event of power failure
  • Flow computer/controller with odorization data history and alarm history
  • Options include volumetric temperature compensated control, weight-based control, remote communications/alarming and HMI
  • Automatic adjustment of odorization based on flow rate (no external meter required).
  • Remote tank level visibility.
  • Retrofitting to existing tanks, or installed as a new package.
  • Low power, able to operate on solar
