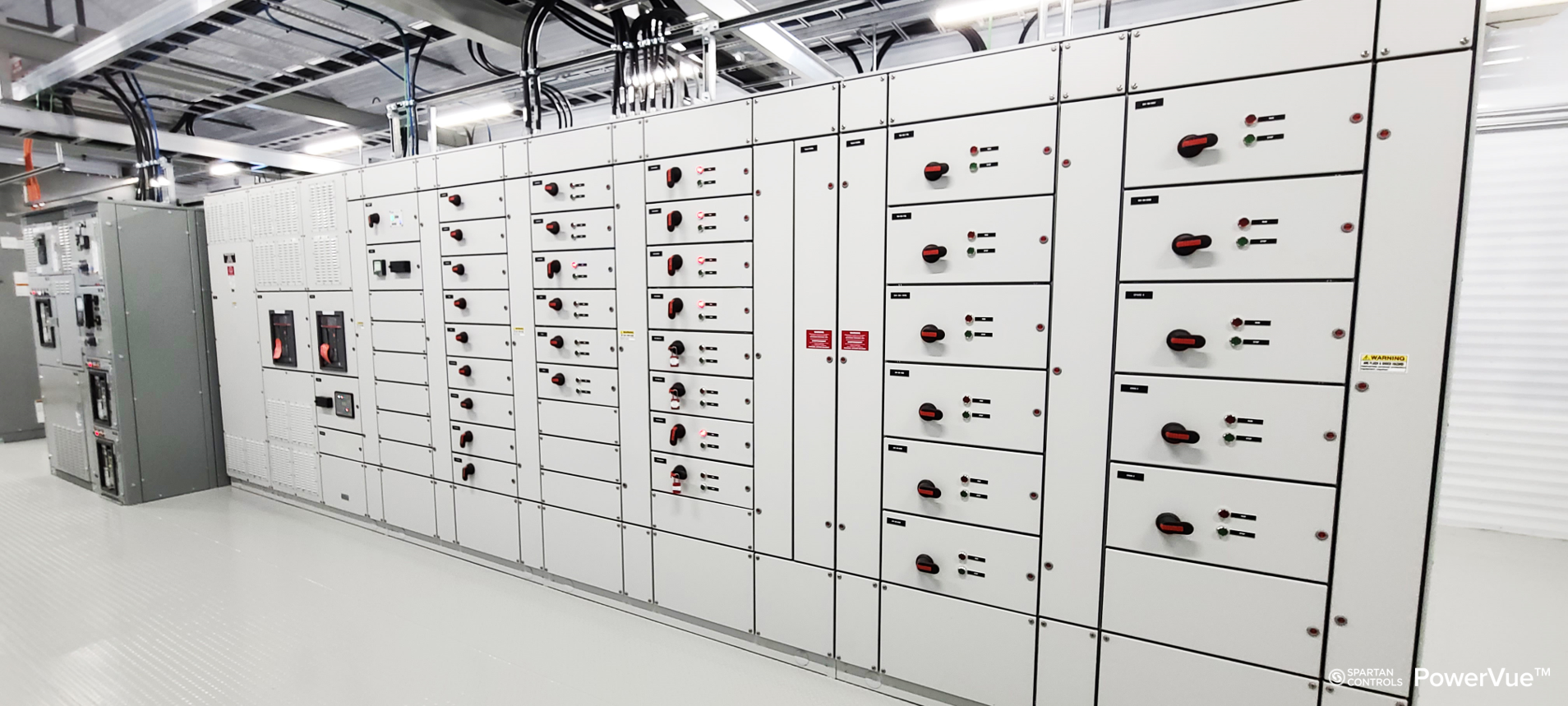

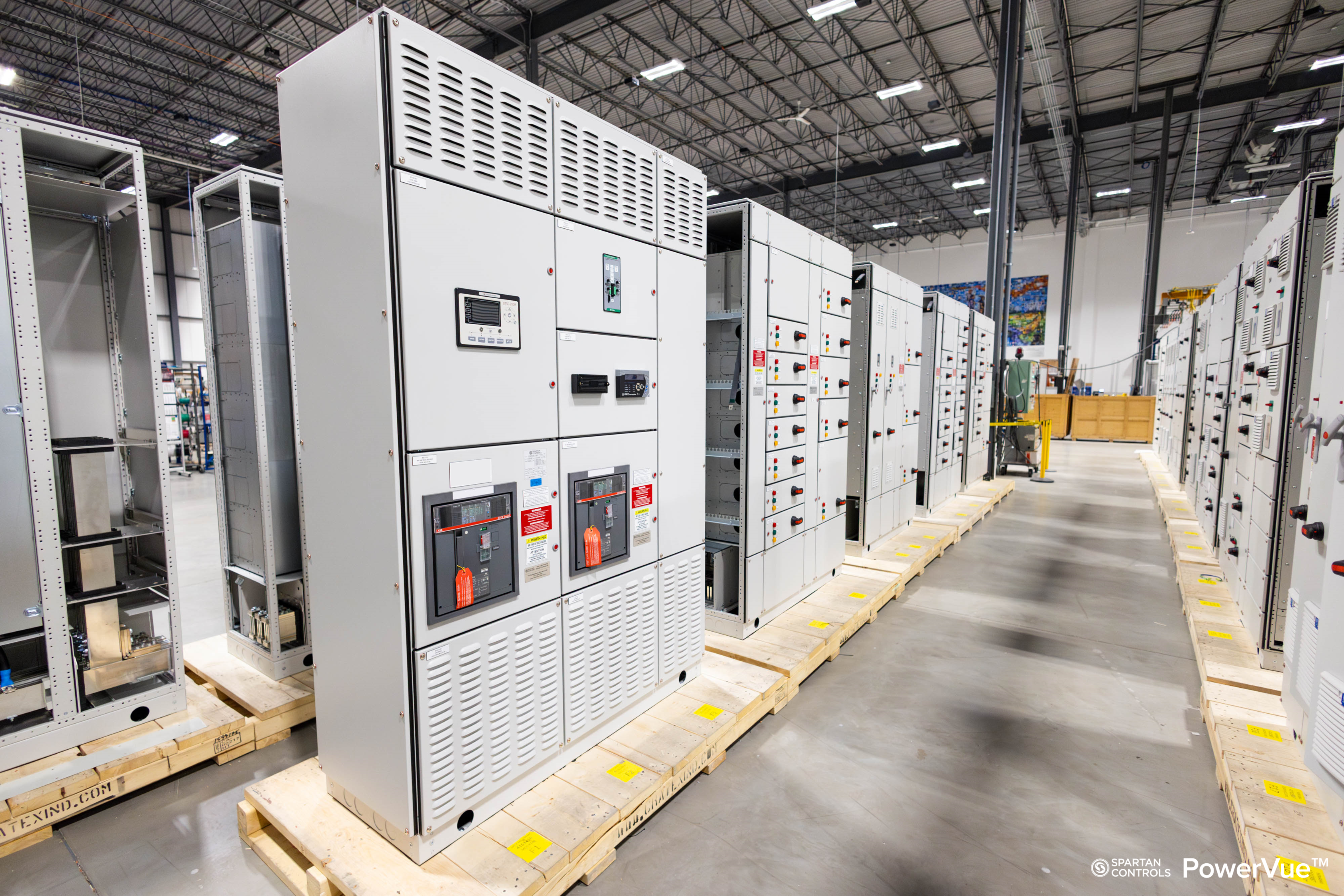

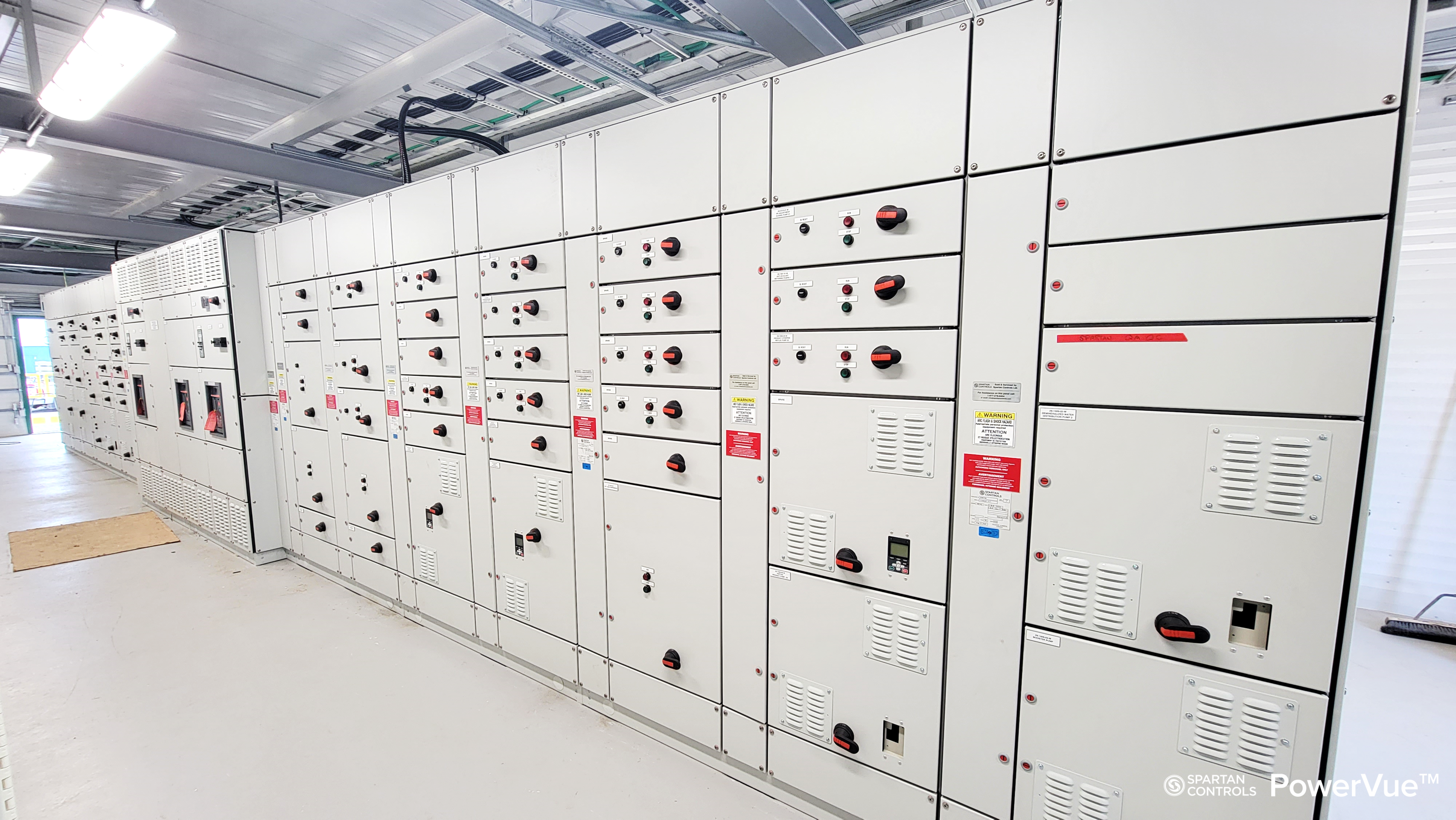

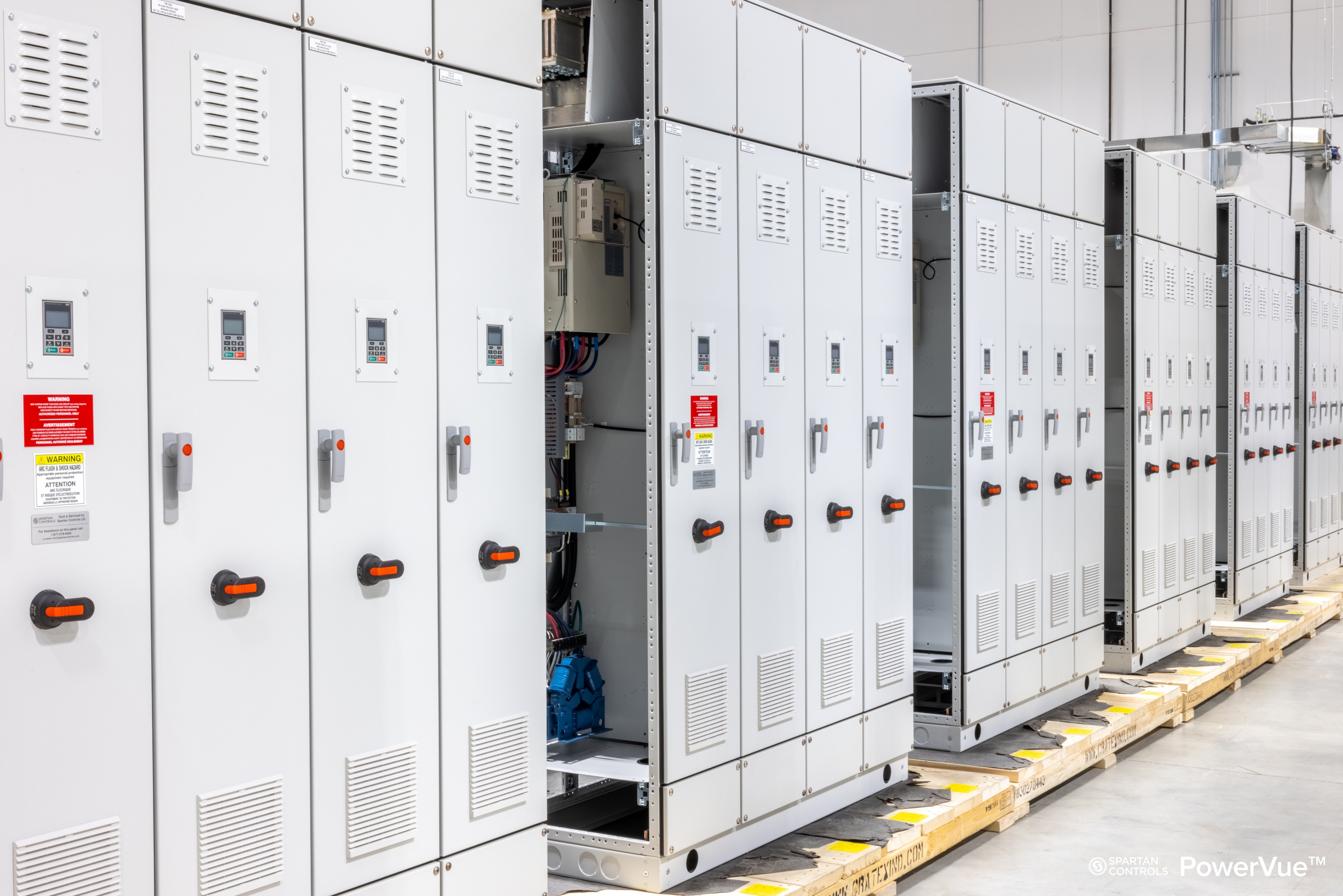

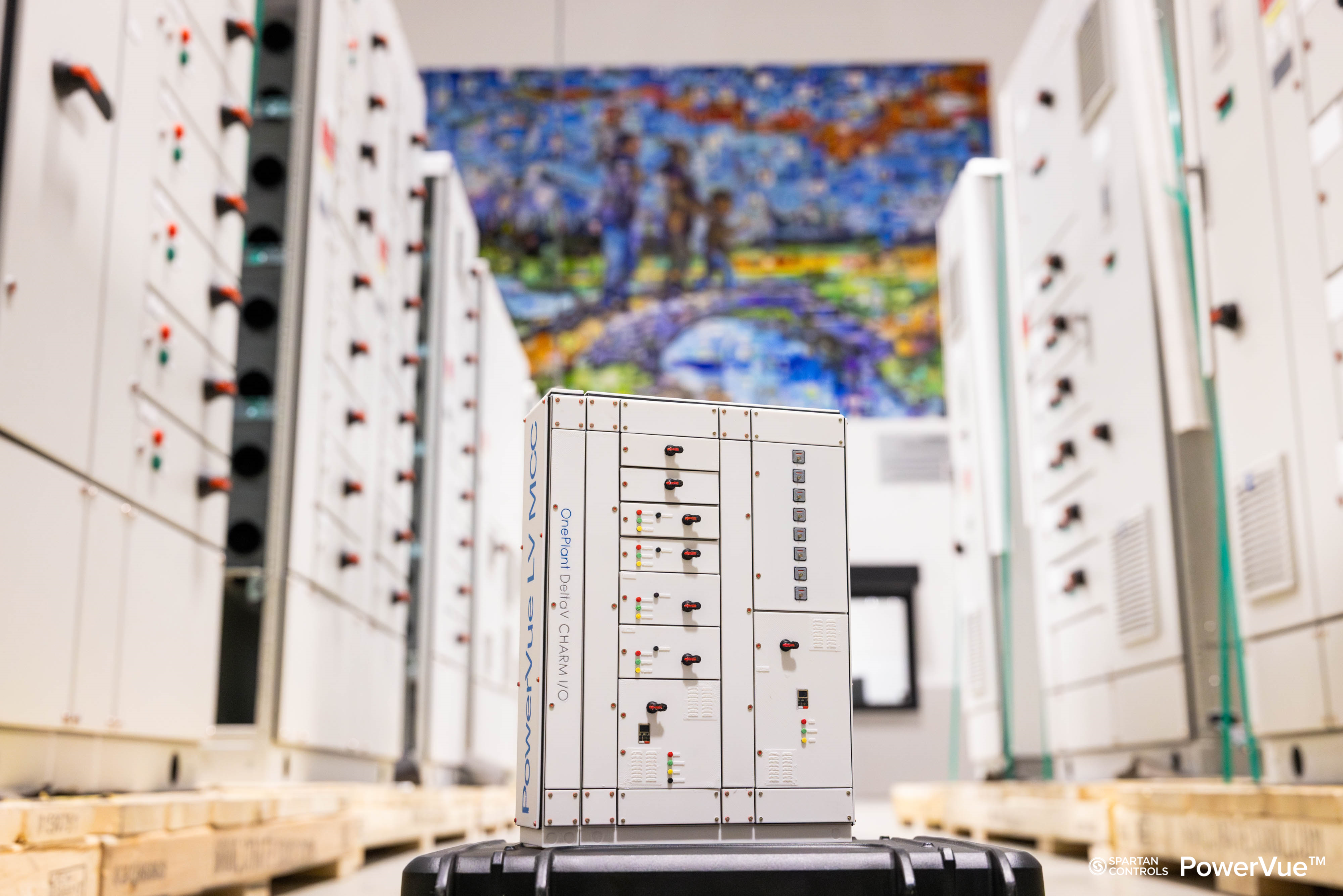

Spartan Control’s PowerVue™ Motor Control Centres (MCC) are designed to accelerate project timelines while reducing installation and commissioning costs associated with low voltage MCC projects.

Our innovative assembly process provides flexibility to project managers, engineers, and electricians to ensure you get what you want when you want it.

Our MCCs are designed and assembled in Calgary, AB, Canada.

Calgary Solutions Centre

Features

  • Reduced Start-up time | Spartan PowerVue™ can be equipped with built-in DeltaV™ to significantly reduce site installation and commissioning time.
  • Increased Safety | Protect personnel and equipment by reducing arc flash risk with optional integral arc quenching technology.

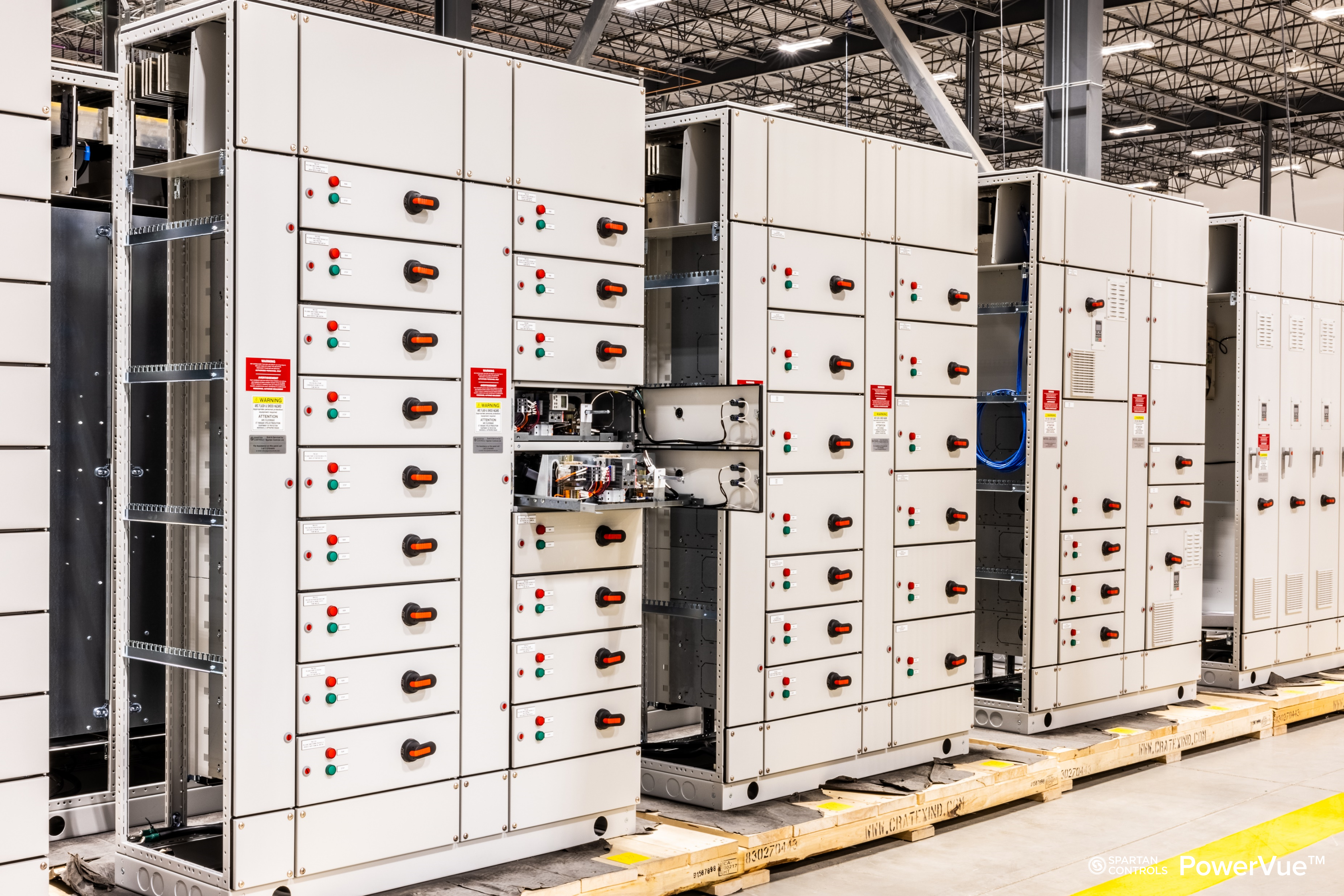

  • Reduced Footprint | Compact withdrawable buckets can reduce the overall size of an MCC.

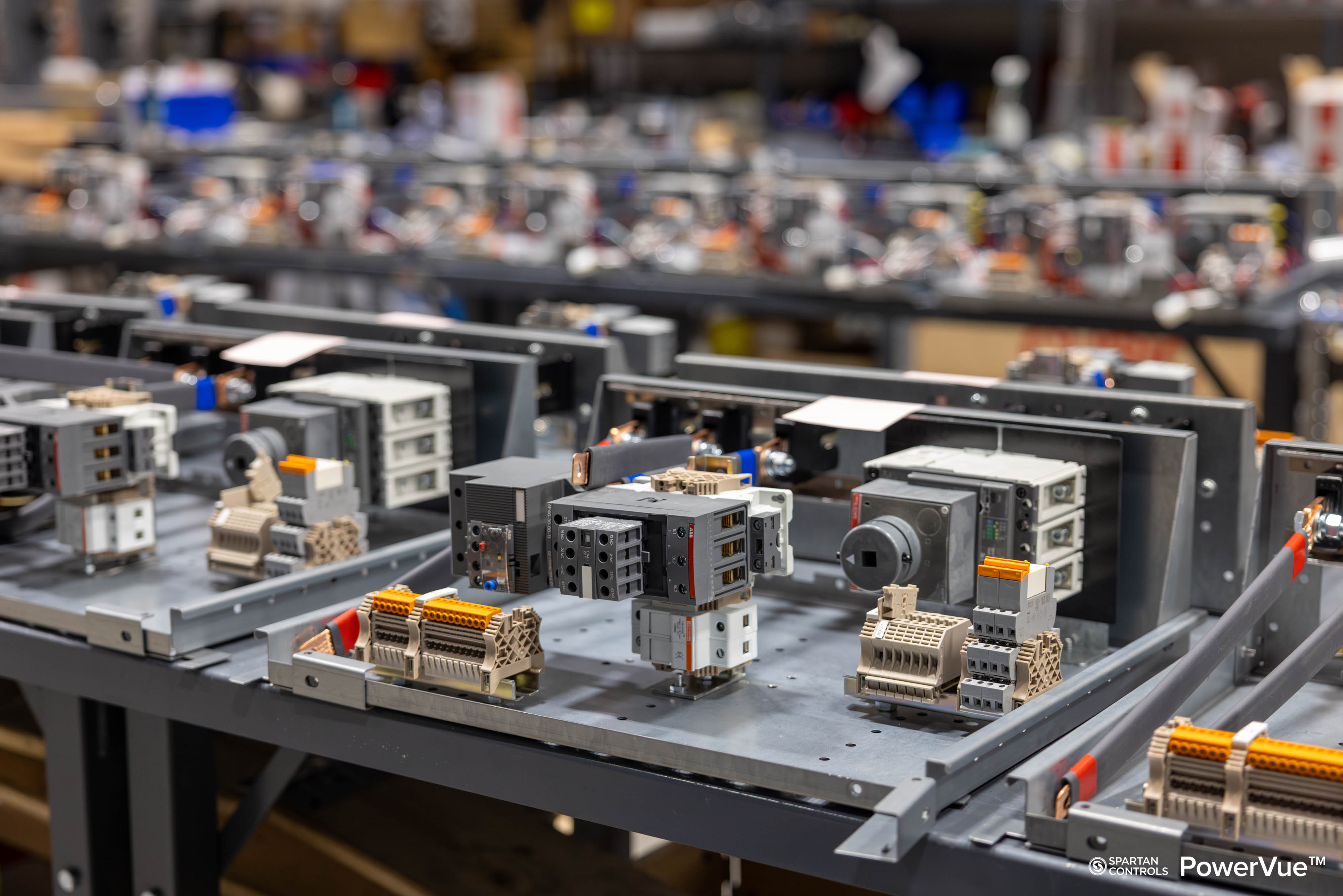

  • Reduced Cost | Multiple mounting options for electrical devices can reduce the overall cost of an MCC.
  • Easy Installation | Larger wireways and quick connection features facilitate easy installation for electricians and staff.

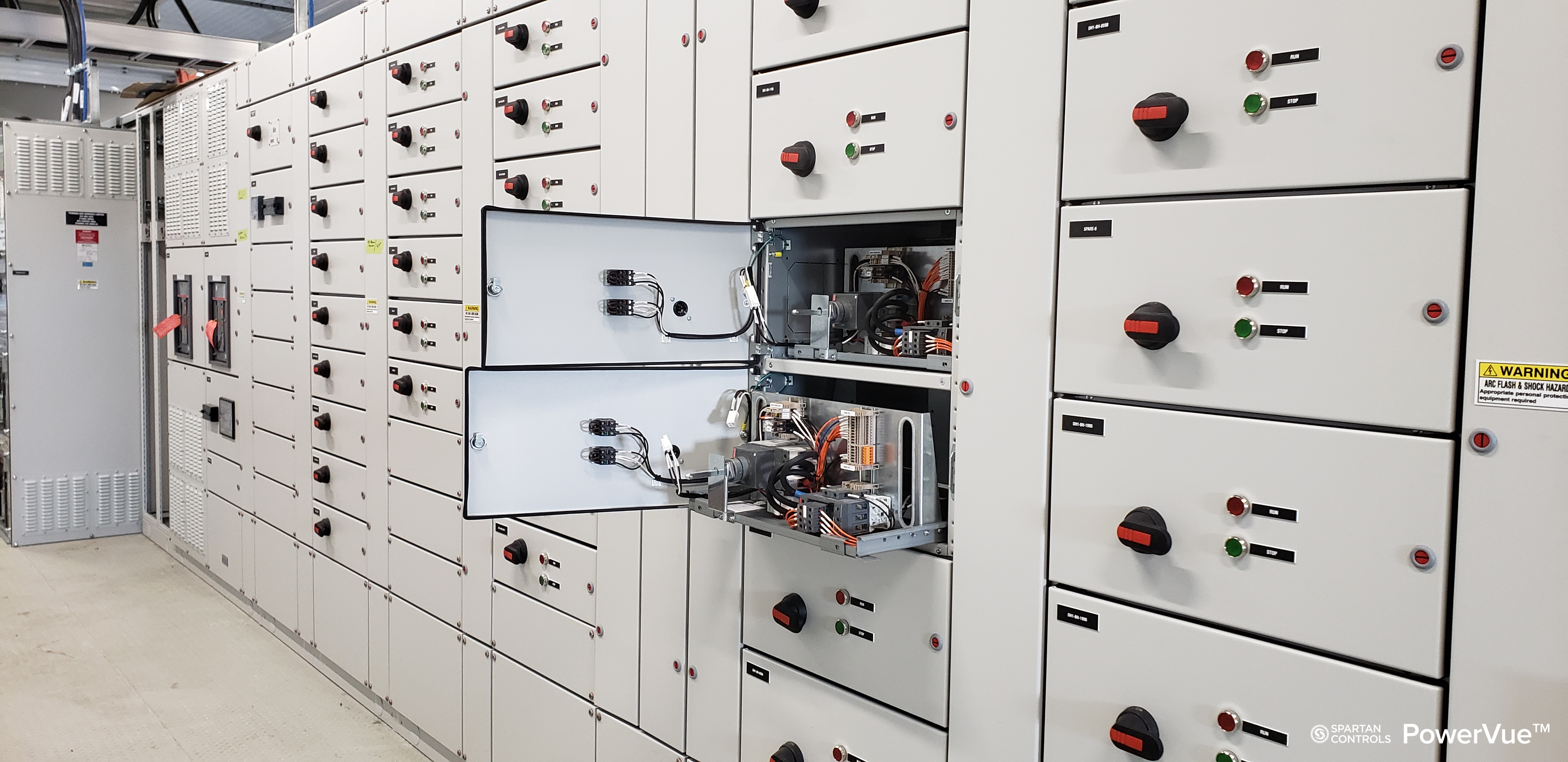

  • Easy Maintenance | Fully withdrawable options allow for a bucket to be changed in seconds without the use of any tools or manually disconnecting any cables.
PowerVue™ Motor Control Centres (MCC)

Specs

Environment
Indoor
Altitude
1200m/4000ft*
Temperature
0°C to 40°C*
Temperature Rise
65°C
Enclosure Rating
NEMA 1, NEMA 1A Gasketed, NEMA 12
Standards
CSA C22.2 #254, UL845, IEC 61439*, IEEE 519 Compliant
Voltage
208, 480, 600 VAC
Frequency
50Hz, 60Hz
Ampacity
up to 5000A
SCCR
up to 100kA
System
3P3W, 3P4W
Grounding Options
HRG, Solid
Busbar
Tinned Copper, Metal Barriered
Protection
Ground Fault, SPD, IEC 61850, Arc Mitigation
Altitude               1200m/4000ft
* Higher altitude requires derating

Temperature     0°C to 40°C
* 0°C to 25°C standard rating

Standards           CSA C22.2 #254, UL845, IEC 61439, IEEE 519 Compliant
* Application specific
