The Rosemount 3408 Non-Contacting Radar Level Transmitter, with Smart Echo Supervision™ technology, offers enhanced reliability for level measurement and overfill prevention.

  • It supports wireless and remote configuration through optional Bluetooth® for the wired model or WirelessHART® for automated measurements in hard-to-reach areas, cutting down wiring costs.
  • The transmitter's smart diagnostics package provides real-time monitoring, remote testing, health checks, and historical data access, enhancing safety, efficiency, and proactive maintenance.
  • Safety certifications, including SIL2 (IEC61508) and NAMUR type testing, along with remote proof-testing, ensure protection for people, assets, and the environment.

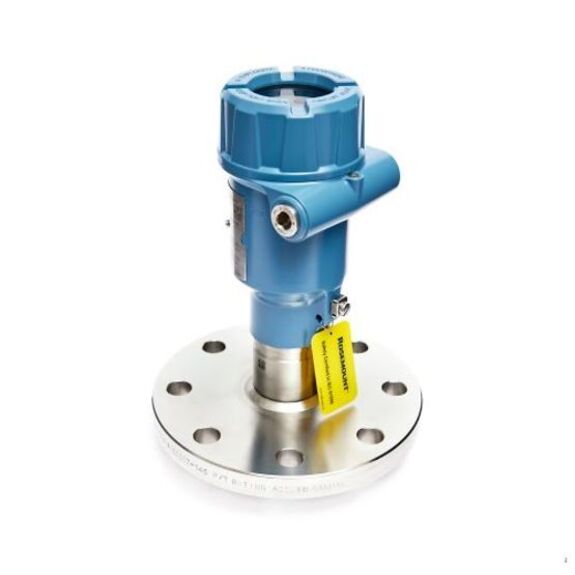

Rosemount 3408 Level Transmitter - Non-Contacting Radar

Specs

Accuracy
Standard: ± 0.08 in. (± 2 mm)
Measurement Range
98 ft. (30 m)
Operating Pressure
-15 to 363 psig (-1 to 25 bar)
Operating Temperature
-76 to 392 °F (-60 to 200 °C)
Power Supply
12-35 VDC (30 VDC in Intrinsically Safe installations)
Communication Protocol
4-20mA HART7® (optional Bluetooth® connectivity), WirelessHART®
Measurement Frequency
80 GHz
Certifications/Approvals
ATEX/UKEX, IECEx, USA, Canadian, see full specs for complete list of certifications
Safety
IEC 61508 certified to SIL 2 (Not available with WirelessHART® option)
Antenna Type
Process Seal, Lens Antenna, ATAP Lens Antenna
Wireless Update Rate
4 sec. to 60 min., user selectable
Power Module Life
Up to 10-year life, field replaceable (order separately)
Wireless Range

Features

  • With Smart Echo Supervision™ technology, Rosemount Non-Contacting Radars (except for wireless models) automatically track all echoes, including those from obstructions in the vessel, and distinguish them from the real product surface echo. This ensures the true product level is reliably and accurately reported.
  • Lens antenna available for very small process fittings (3/4") and with optional bracket mount
  • All PTFE wetted parts allow for use in harsh conditions, such as corrosive medias
  • Convenient configuration and maintenance using optional Bluetooth technology
  • Schedule automatic health checks and receive report with Smart Meter Verification
  • Go back in time for troubleshooting or process insight with on-board data Historian
  • Continuously monitor measurement health with Smart Diagnostics Suite allowing for preventive maintenance and reduced downtime
  • Safe and simple proof-tests can be carried out from the control room without changing the actual level
  • ​Wireless Features​: WirelessHART® technology protocol is secure and cost-effective and delivers >99% data reliability. SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal. Easy installation enables quick instrumentation of measurement points without the cost of wiring.
