The PointWatch Eclipse® Model PIRECL IR Hydrocarbon Gas Detector is our most rugged stainless steel, point infrared gas detector.
It is approved to be factory calibrated to detect methane, propane, ethylene, and butane. The Eclipse goes above gas detection to life-safety control. Thanks to its onboard relays and tri-colored LED indicator, the Eclipse has earned ANSI/ISA approval (ANSI/ISA-12.13.01: 2000) to annunciate and initiate life-safety executive control functions.
Det-Tronics IR Detector PIRECL


Continuous, Fixed Monitoring
Flammable hydrocarbon gases from 0 to 100% Lower Flammable Limit (LFL)
Standard Device Outputs
Electrically isolated 4-20 mA signal with HART communication protocol and RS-485 serial communication
Global Certifications


  • Performance certified to methane, propane, ethylene, and butane, and is shipped from the factory set and calibrated to one of these gases
  • Rugged IP66/67 stainless steel construction and extended interval testing
  • Diagnostic LED provides local alarm and fault annunciation

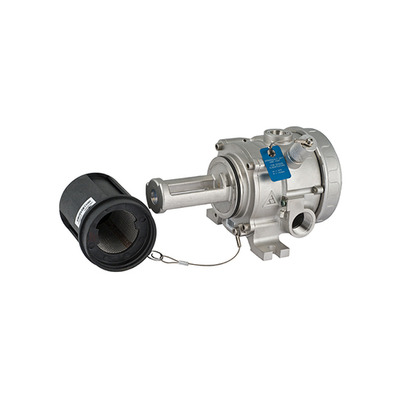

  • Weather baffle with hydrophobic filter option combined with heated sapphire optics reduces nuisance faults from rain and condensation in harsh environments
  • Certified to FM, CSA, IECEx and ATEX requirements to detect select gases in as little as 1.5 seconds
