GOV10/50 Series

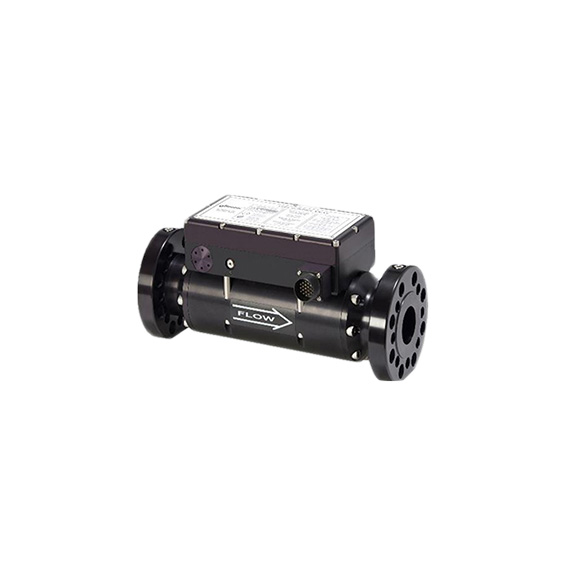

The GOV10/50 series is both a fuel valve and electronic governor integrated into a single unit.
These governors fit a wide range of fuel injected engines including integral types such as Cooper Bessemer, Clark, Ingersoll Rand and Worthington, and separable types such as White Superior and MEP. The GOV10 model is used on engines up to approximately 3,500 hp, whereas the GOV50 applies to engines from 3,500 to 10,000 hp. The GOV series completely eliminate troublesome hydraulic governors, actuators, and linkages, and significantly improve starting performance and speed stability. The GOV series may also be ordered with a fuel flow measurement option utilizing a built-in orifice meter and built-in pressure, differential pressure, and temperature sensors.
GOV10/50 Series

Specs

Improved starting
Sets gas pressure to pre-selected value and ramp rate
Better speed stability
Continuous dynamic gain adjustment for load and no load conditions
Fail safe design
Spring-loaded poppet valve closes on loss of power or gas pressure
High tolerance to dirt
Flow-through design minimizes effects of contamination
Certification
CSA-certified for Class I, Divisions 1 and 2, Group D hazardous areas
