Fireye SureFire™ II High Tension Spark Igniters (HTSS) are designed to ignite a mixture of various types of gaseous fuels with air.

The SureFire™ II High Tension Igniter with “Spark & Sense” feature can be used as a flame safeguard for flame detection after ignition period.

The rod can detect the presence of flame by utilizing ionization current sensing.

The High Tension Spark Igniters are also designed to be compatible for direct spark ignition of SureFire II Natural Draft Gas Pilots and SureFire II Forced Draft Gas Pilots.

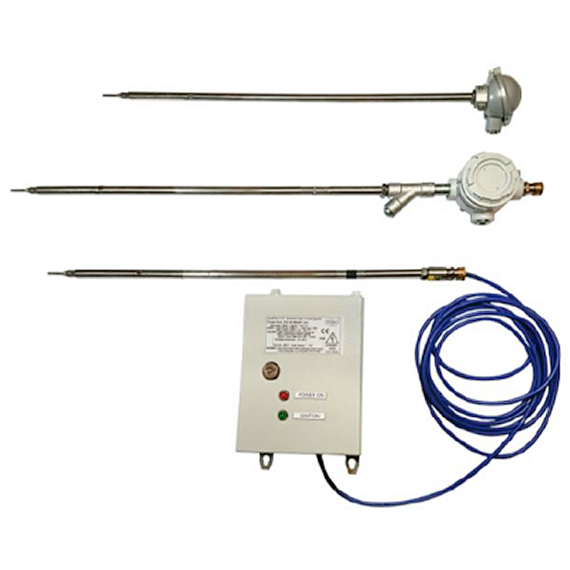

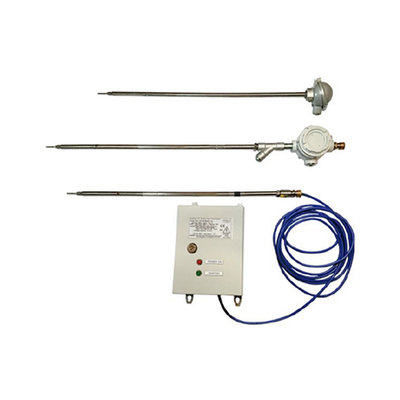

SureFire II High Tension Spark & Sense Igniter

Specs

Power supply voltage; current
230/110(115) VAC (50/60 Hz); 0.5/1.2 A (230/110 VAC)
Method of operation
electrical arc
Ignition control signal
24 VDC, max. 12A (20A peak)
Available rod insertion length L1
0.65 – 3.15 m
Rods and tips outer diameter, material
Ø16 mm, 316 SS
Rods optimal electrical operation parameters
15-20 mA at 7,500–10,000 V

Features

  • Power Packs available in 110 or 230VAC supply versions
  • 16 mm OD rod of insertion length 0,65 to 3,15 metres, with short or long tip
  • No adjustable parts and the use of interchangeable rod tip of a special design with fixed gap between electrodes ensures long operation with low maintenance
  • ATEX options available
  • Advanced design of the rod and the whole unit provides a very stable electric arc and repeatable ignition
  • It is constructed of high-quality materials and each unit is checked and tested before dispatch
  • Low cost solution
