The SureFire™ II Heavy Duty High Energy Igniter (HDHEI) is designed for direct ignition of liquid fuels like medium oil and heavy oil which can be steam, air or mechanically atomized.

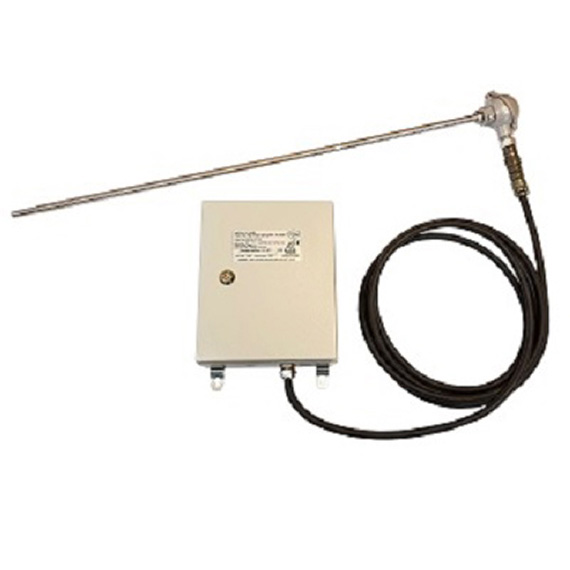

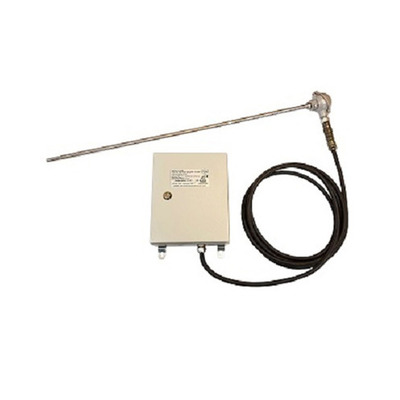

SureFire II Electrical Heavy Duty High Energy Spark Igniter

Specs

Power supply voltage; current
230/115 VAC (50/60 Hz) switchable, at approx. 1.8/3.6 A, 220VA
Transformer output voltage
1,150 VAC (RMS)
External protection
8 A, fuse type D (both voltages)
Secondary circuit max. voltage
2,300 VDC (output terminals to rod)
Method of operation
intermittent, 3 electrical sparks per second x 24 Joules each (72 Joules per second)

Features

  • Selectable voltage (115/230 VAC)
  • Choice of system: Integrated, Kit, or Kit with Quick Disconnect
  • Compact coaxial retractors
  • Safety bleed resistor discharges capacitors in 90 seconds
