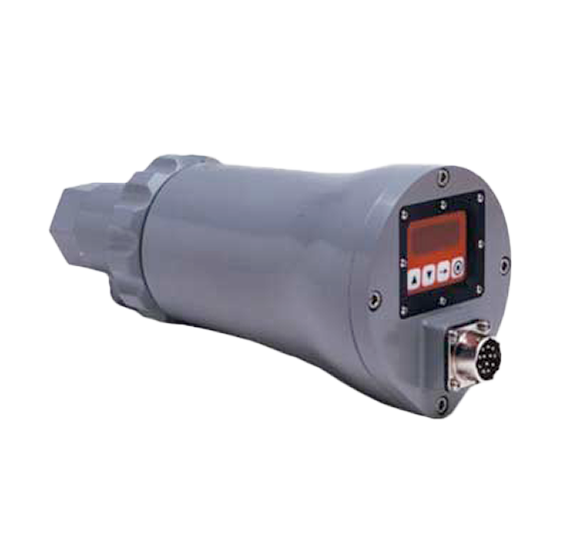

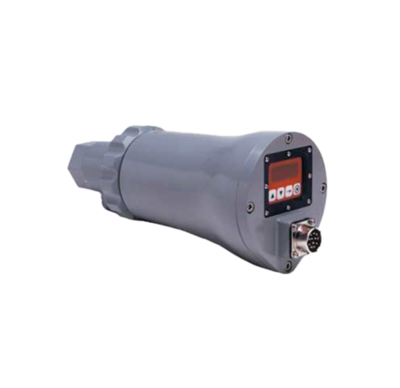

The Fireye InSight Type 95IR, 95UV, ad 95DS flame scanners are microprocessor-based flame scanners utilizing solid-state infrared (IR), ultraviolet (UV) or dual (IR and UV) sensors.

The Fireye InSight Type 95 flame scanners incorporate an internal flame relay with adjustable ON/OFF thresholds, thereby eliminating the need for a remote flame amplifier. All Fireye inSight scanner models are powered by 24 Vdc, have either a twelve-pin electrical quick disconnect or 10 ft. cable (“CG” models), and contain electronic self-checking (no mechanical shutter required). The scanners contain an eight-character alpha-numeric LED display and a four push-button keypad to enable the user to view operating parameters and select setpoints.
