The PF2100 Burner Management System is an advanced electronic control and monitoring solution for natural draft burner applications up to 12.5 MM BTU/h.

Designed for demanding oil and gas operations, the system helps enhance burner safety, improve reliability, and simplify burner management across a variety of process heating applications.

Applications

  • Amine Reboilers and Combustors
  • Dehydrators
  • Gas Production Units
  • Heated Separators
  • Incinerators
  • Line Heaters
  • Treaters

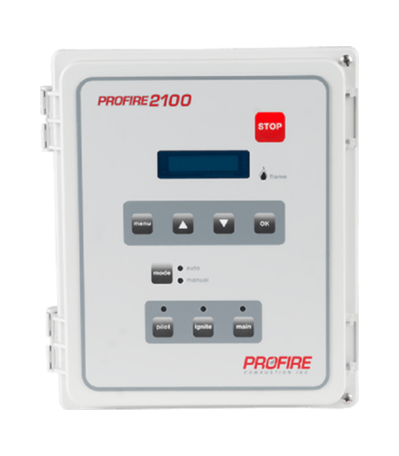

Profire PF2100 Burner Management System
Profire PF2100 Burner Management System

Specs

Power Input
12/24VDC Input
Temperature Rating
-40°F to +131°F (-40°C to +55°C)
Environmental Protection
IP66 / Type 4x
Hazardous Location Rating
Class I Div 2 Group ABCD; T4A, Type 4x / Class 1, Zone 2, AEx nA IIC T4 IP66

Features

  • User friendly display and interface
  • Lower Power requirement
  • Auto ignition and re-light with proven spark
  • Advanced flame detection circuit
  • Dual processors for failsafe operation
  • Integrated: High temperature shutdown, temperature control
  • History and event log
  • 4-20 output (Temperature / Valve control)
