Built-in techniques and algorithms allow the BurnerLogix to learn the characteristics of the fuel being burned and set its internal thresholds to optimize detection under all conditions.

The BurnerLogix has a smaller footprint than previous offerings with the keypad selectable parameters, most application requirements are easily solved with one programmer module, resulting in less inventory of spare parts. The ‘revert to pilot’ feature can increase a burner’s turndown capability. The new pigtail wiring base can save time and labor at the OEM’s and can make upgrading existing installations easy and quick.

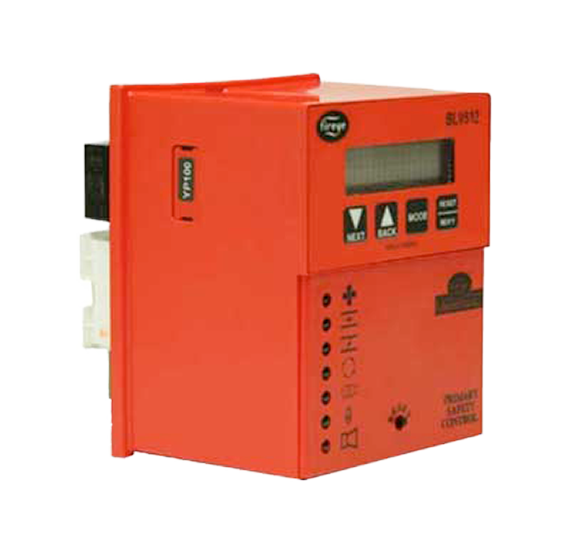

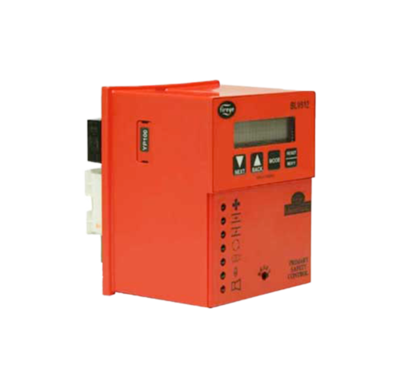

BurnerLogix Y Flame Safeguard


Supply Voltage
YB110 120 VAC (+10%, -15%) 50/60 Hz; YB230 230 VAC (+10%, -15%) 50/60 Hz
Power Consumption
25 VA
Temperature Rating
-40 to 60 degrees Celsius (-40 to 140 degrees Fahrenheit)
Unit Dimensions
Wiring base 60-2801-1 - 4.0" (191mm) W x 5.0" (127mm) H
Shipping Weight
YB110 (YB230) Approx. 3.2 lbs. (1.45kg)


  • Smaller footprint saves space
  • Bright vacuum fluorescent display
  • SMART LED’s for status and diagnostics
  • Keypad configurable parameters
  • Expanded keypad functions
  • Built-in language selection
